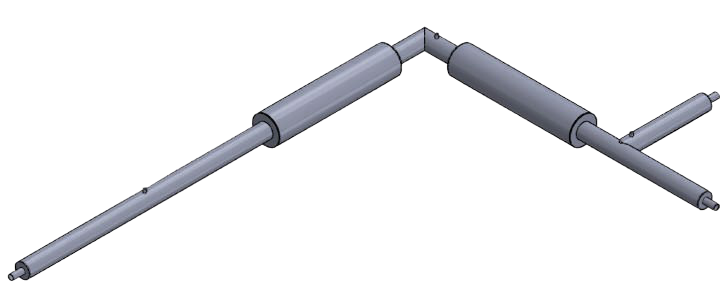

Quik-Fab modular VJ pipe is a vacuum insulated pipe for the transfer of cryogenic liquids. It is configured from pre-engineered straight sections, 90 degree elbows and tee sections, and each joint is a foam joint protected and sealed by a stainless steel sleeve. It comes in four sizes from 1/2" x 2" to 3" x 5".
| Application | Cryogenic liquid transfer (LN2, LAR, LNG and LCO2) |
| Components | Pre-engineered straight sections, 90 degree elbow sections, tee sections, VJ flex sections and field cans |
| Design Standard | ASME B31.3 |
| MAWP | Internal bellows: 150 PSIG / external bellows: 400 PSIG |
| Material | A312-304SS pipe (inner line and outer jacket) |
| Insulation | MLI "Super Insulation" / static vacuum with complete getter system (1" thick vacuum insulation) |
| Joint | Foam joint protected by a stainless steel sleeve, then sealed as a moisture barrier / installation requires field welding and a pneumatic pressure test in accordance with ASME B31.3 |
| Features | Modular sections can be reconfigured or reused / vacuum design life of over 10 years / custom lengths, VJ flex sections and valves also available |
| Sizes | 1/2" x 2" / 1" x 3" / 2" x 4" / 3" x 5" |
| Part Numbers 1/2" x 2" (internal bellows / external bellows) | 4" SCH 5 field can (30" long, 2.5 linear ft): 5798 / 6303 / 90° elbow section (4 linear ft): 5648 / 6296 / tee section (6 linear ft): 5646 / 6295 / 6 ft VJ flex section (10 ft overall, 10 linear ft): 6381 / 6382 / straight section 5 ft: 5650 / 6297 / straight section 8 ft: 5651 / 6298 / straight section 10 ft: 5652 / 6299 / straight section 12 ft: 6217 / 6300 / straight section 16 ft: 6218 / 6301 / straight section 20 ft: 5653 / 6302 |
| Part Numbers 1" x 3" (internal bellows / external bellows) | 6" SCH 5 field can (30" long, 2.5 linear ft): 5799 / 6334 / 90° elbow section (4 linear ft): 5649 / 6327 / tee section (6 linear ft): 5647 / 6326 / 6 ft VJ flex section (10 ft overall, 10 linear ft): 6383 / 6384 / straight section 5 ft: 5654 / 6328 / straight section 8 ft: 5655 / 6329 / straight section 10 ft: 5656 / 6330 / straight section 12 ft: 6219 / 6331 / straight section 16 ft: 6220 / 6332 / straight section 20 ft: 5657 / 6333 |
| Part Numbers 2" x 4" (internal bellows / external bellows) | 6" SCH 5 field can (30" long, 2.5 linear ft): 5796 / 6350 / 90° elbow section (4 linear ft): 5794 / 6351 / tee section (6 linear ft): 5793 / 6356 / 6 ft VJ flex section (10 ft overall, 10 linear ft): 6385 / 6376 / straight section 5 ft: 5909 / 6352 / straight section 8 ft: 5910 / 6353 / straight section 10 ft: 5911 / 6354 / straight section 12 ft: 6221 / 6377 / straight section 16 ft: 6222 / 6378 / straight section 20 ft: 5795 / 6355 |
| Part Numbers 3" x 5" (internal bellows / external bellows) | 8" SCH 5 field can (30" long, 2.5 linear ft): 5800 / 6357 / 90° elbow section (4 linear ft): 6193 / 6358 / tee section (6 linear ft): 6198 / 6363 / 6 ft VJ flex section (10 ft overall, 10 linear ft): 6386 / 6387 / straight section 5 ft: 6164 / 6359 / straight section 8 ft: 6195 / 6360 / straight section 10 ft: 6196 / 6361 / straight section 12 ft: 6223 / 6379 / straight section 16 ft: 6224 / 6380 / straight section 20 ft: 6197 / 6362 |
