Model: V5SLV

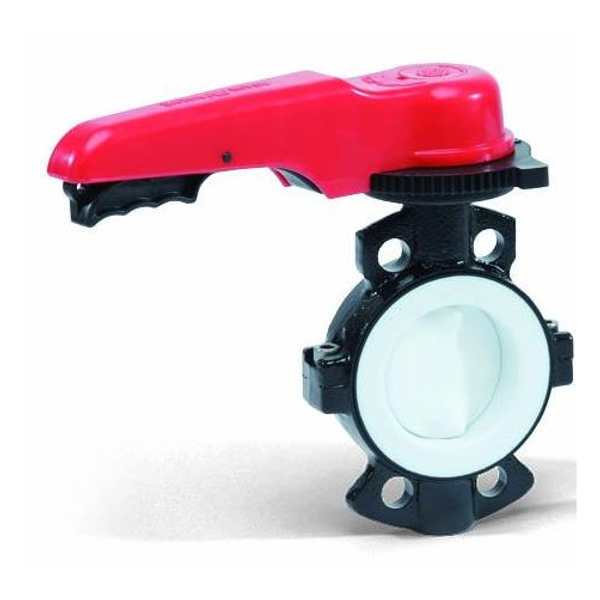

A Type 55IS butterfly valve operated by a lever. It installs in the wafer style from 50mm to 125mm, with an epoxy powder coated ductile iron body and a PTFE disc and seat.
| Size Range | 50 mm-125 mm (2 inch-5 inch) |
| Body Material | Ductile cast iron FCD-S (epoxy powder coated, not in contact with media) |
| Disc Material | PTFE |
| Seat Material | PTFE (backed with CR) |
| Stem Material | SS304 (option: SS316) |
| End Connection | Wafer (DIN, ANSI, JIS10K, JIS5K) |
| Nominal Pressure | PN10 |
| Operating Temperature Range | -20℃~100℃ |
| Maximum Working Pressure | 1.0 MPa {10.2 kgf/cm²} |
| Face-to-Face | ISO 5752 short pattern |
| Top Flange | ISO 5211 |
| Leakage Class | Class VI |
| Vacuum Service | -29.92 inHg |
| Lever | 19-position throttling plate, lockout hole |
| Cv | 100 (50mm), 285 (65mm), 600 (80mm), 940 (100mm), 1500 (125mm) |
| Weight (lb) | 6.61 (50mm), 8.82 (65mm), 9.92 (80mm), 13.23 (100mm), 23.15 (125mm) |
| Options | Lubricant-free wetted parts, manual limit switch |
| Model Code | V5SLV |
| Size | 50~125 |
