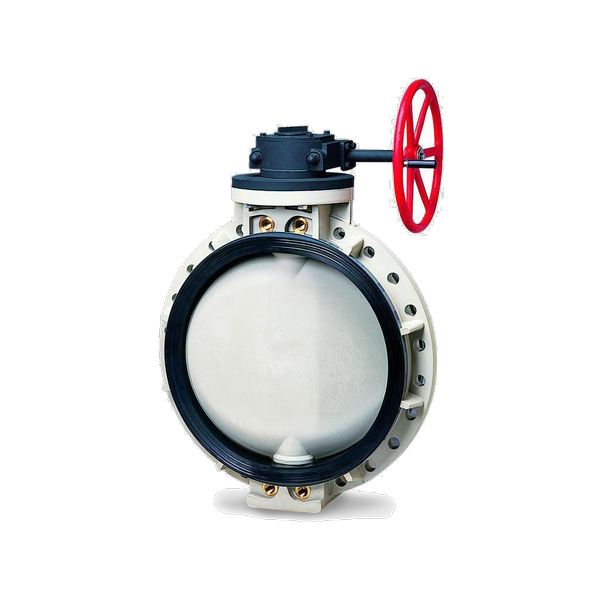

Asahi Butterfly Valve Type 75 (450-600mm)

Model: V75SG, A75K, A75S

A butterfly valve with a short face-to-face dimension that simplifies pipeline installation. Available in manual gear and automatic (pneumatic/electric) types.

Features

Asahi Butterfly Valve Type 75 (450-600mm) V75SG, A75K, A75SAsahi Butterfly Valve Type 75 (450-600mm) V75SG, A75K, A75S 2

Specifications

Size Range450 mm-600 mm (18 inch-24 inch)
Body MaterialPP, PVDF
Seal/Seat MaterialEPDM, FKM, etc.
Connection TypeWafer - JIS10K, DIN, ANSI
Fluid Temperature (PP)-20℃~80℃
Fluid Temperature (PVDF)-20℃~120℃
Max Working Pressure (450mm)0.5 MPa
Max Working Pressure (500mm, 600mm)0.35 MPa
Component Material: StemSUS403
Component Material: Gear BoxFC250, etc. by Rotork (EPOXY PAINT)
Manual ModelV75SG (Side Gear Type)
Automatic Pneumatic Model (A75K)Actuator: TYPE TW (Double Acting)
Automatic Electric Model (A75S)Actuator: TYPE S (Three-Phase AC200V / AC400V)
Detailed Specs and DimensionsSee catalog pages 84-85
