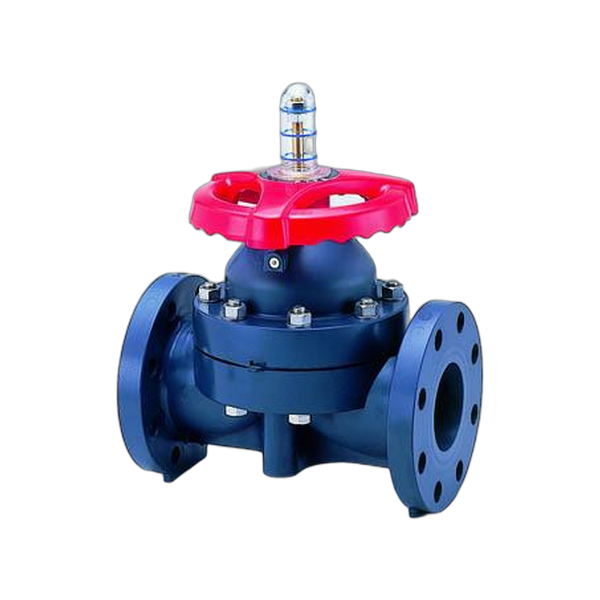

Model: V14MH
| Size Range | 15 mm-100 mm (1/2 inch-4 inch) |
| Body Material | U-PVC, C-PVC, PP, PVDF |
| Seal/Diaphragm Material | EPDM, PTFE, FKM, etc. |
| End Connection | Flanged (JIS10K, DIN PN10, ANSI CLASS150) |
| Operating Temperature Range (U-PVC) | 0℃~60℃ |
| Operating Temperature Range (C-PVC) | 0℃~90℃ |
| Operating Temperature Range (PP) | -20℃~90℃ |
| Operating Temperature Range (PVDF) | -40℃~120℃ |
| Maximum Working Pressure | 1.0 MPa {10.2 kgf/cm²} (normal temperature) |
| Model Code | V14MH |
| Size | 15~100 |
