Hello, this is VALVEPARK.
Today we share an engineering study from our team on how to improve the durability and service life of choke valves used in industrial fields,
and how the findings translate into real-world performance gains.
In this study in particular,
we focused on a solution to reduce valve wear and failure
by applying a high-hardness material called tungsten carbide (WC),
and verified the actual performance improvements achieved.
Put simply, a choke valve is a critical device that regulates the flow and pressure of fluids such as oil and gas.
Especially in industries like oil & gas and offshore plants, choke valves operate under
✔ High pressure
✔ High-velocity fluid
✔ Sand and other particulates
These extreme conditions mean that valve performance and durability are absolutely critical.
The materials commonly used in choke valves are carbon steel and stainless steel.
These materials offer good baseline durability and corrosion resistance, but
they reach their limits in environments with high-pressure, high-velocity fluids carrying sand or other particles.
For example,
fast-moving fluids continuously hammer the inside of the valve,
and the fine particles (such as sand) carried within scrape the surface,
leading to the following problems.
Rapid wear (the surface is easily worn down)
(eroded by high-velocity fluid)
Corrosion (damage from chemical reactions)
As a result, valve service life is shortened and maintenance costs rise.
This is exactly where tungsten carbide (WC) comes in.
✔ An ultra-hard material that combines metal and ceramic properties
✔ Extremely high hardness (incredibly tough)
✔ Strong resistance to wear & corrosion
✔ Stable under high temperature and high pressure
In short, it is "an industrial material almost as hard as stone."

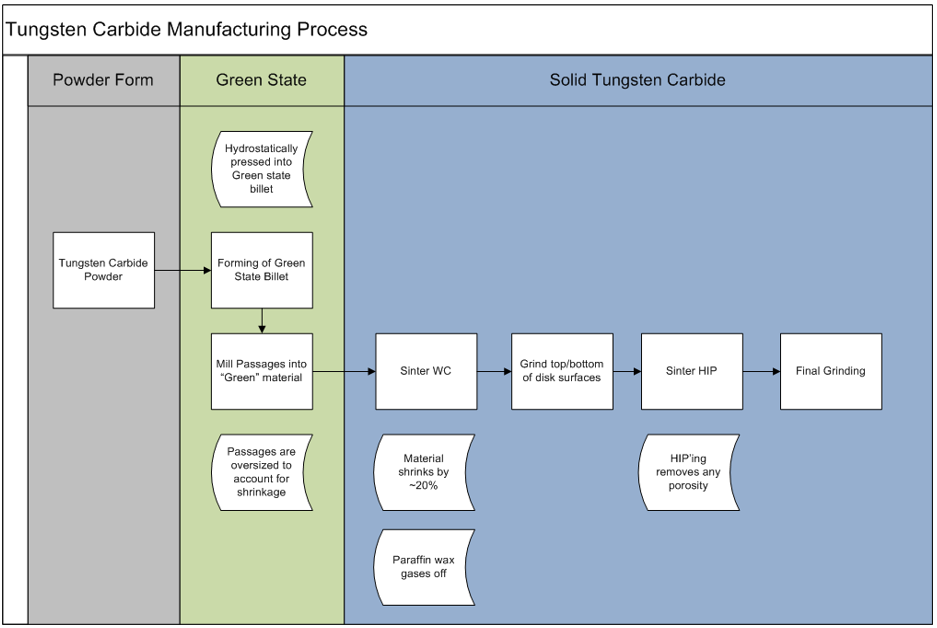

In simple terms, the process follows these steps.

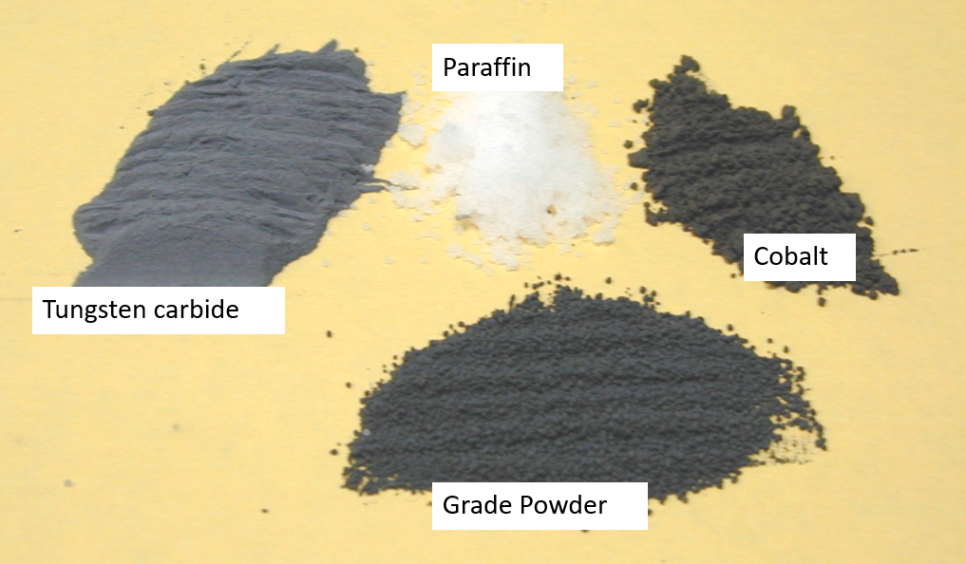

1️⃣ Powder mixing (tungsten + cobalt)
↓
2️⃣ Compression molding (shaping)
↓
3️⃣ High-temperature sintering (1350-1450°C)
↓
4️⃣ Ultra-high-strength material complete
Cobalt (Co) acts as a binder
Paraffin aids molding and is later removed
※ The result is an extremely dense and rigid structure

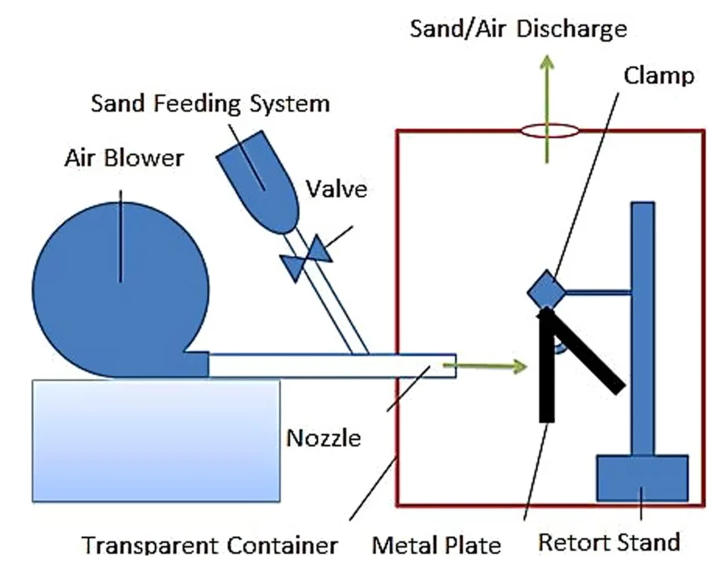

To simulate real operating conditions, the study performed
a test that rapidly blasts sand mixed with air against the valve.
💨 High-velocity air + 🪨 sand
↓
Continuously impact the valve
↓
Measure how much it wears
Velocity: 20 m/s
✔ Sand feed: 1 kg/h
✔ Repeated test cycles
In plain terms, we kept blasting sand at the valve to see how long it would hold up.

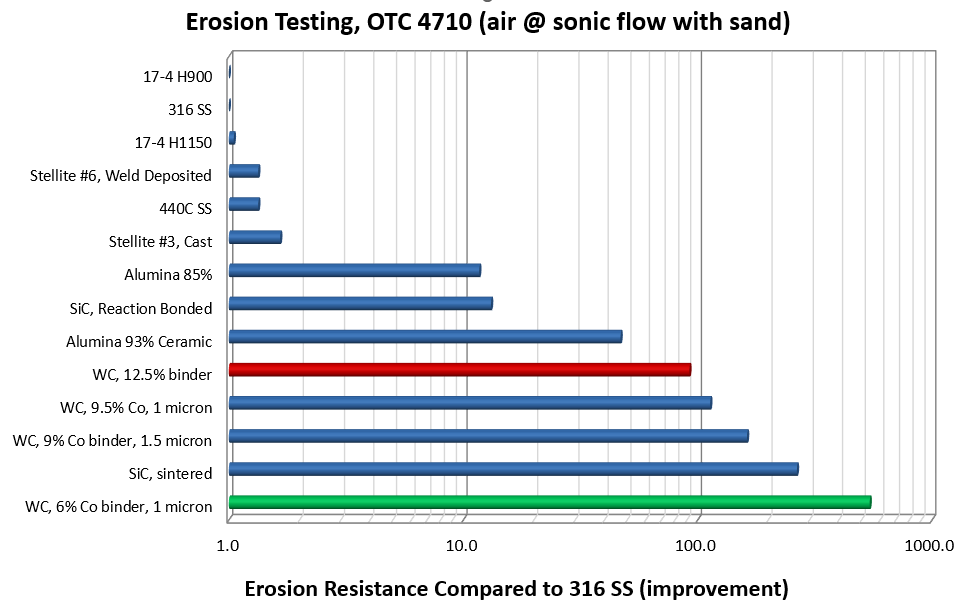

The results were highly impressive.
Tungsten-carbide-applied valves showed
over 5 times higher wear resistance versus conventional materials
Even after extended operation,
flow-rate retention remained stable
When tungsten carbide is applied,
1. Longer valve service life
2. Minimized wear and damage
3. Reduced maintenance costs
4. Improved process stability
These are major advantages on the industrial floor.
🔍 What this study means - closing thoughts
This study went beyond a simple materials comparison
and is meaningful in that it points to a choke-valve design direction that can run reliably even in extreme industrial environments.
In particular,
✔ High-velocity fluid flow
✔ Flow streams containing sand or particulates
✔ Systems under sustained high pressure
the key takeaway is that tungsten carbide proved its potential as a valve material that holds steady performance
even under such demanding conditions.
A choke valve is not just a part -
it is a core element that drives overall plant stability and productivity.
These results confirm that tungsten carbide (WC) compensates for the limits of conventional metallic materials
and serves as an effective solution that surpasses those limits to deliver superior durability and reliability.
📌 At VALVEPARK,
we leverage products built on these high-performance materials
to help our customers improve process stability and efficiency.
If you have any questions or product inquiries, please feel free to reach out at any time.
