For anyone approaching sanitary piping for the first time, the name Equal Tee may sound unfamiliar. Described simply, it is a T-shaped pipe connection component that divides one line into two directions of the same size, or conversely merges two lines into one. In processes where hygiene matters, it is one of the most basic and yet indispensable fittings. Today we look at what the Sanitary Equal Tee (SUS304, Weld Type) is and where it is used.

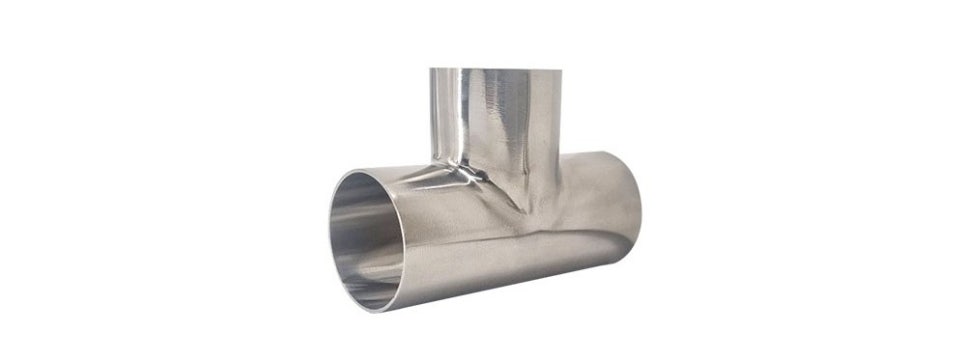

A sanitary equal tee is a weld-type tee fitting that distributes or merges fluid in sanitary (hygienic) piping. As the word "equal" indicates, the branch connections on both sides are manufactured to the same size as the main body, so that fluid is branched, or brought back together, consistently. Because it is joined by welding, it is combined with the pipe as a single structure, which allows a rigid piping system to be built.

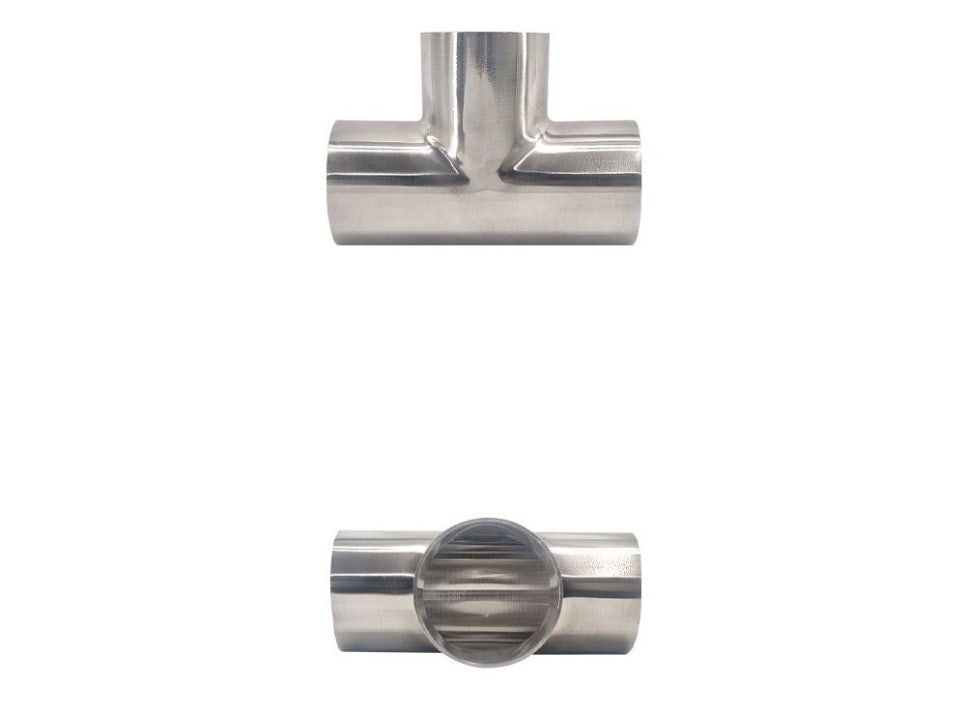

The sanitary equal tee is manufactured by SUS304 precision casting. SUS304 is a stainless steel material with excellent corrosion resistance and strength, and it is widely used across industrial sites. The interior is also polished in line with sanitary piping standards, so the surface the fluid flows over is smooth and easy to clean.
A weld-type equal tee is welded directly onto the pipe in use. The piping becomes one continuous structure, so there are no separate fastening parts, and the most important characteristic is that stable airtightness can be maintained over long periods. Because there are fewer joint areas, dead space can also be minimized, which is why it is widely used in piping systems where hygiene is critical.
The Sanitary Equal Tee is used in the sanitary piping of many industries. It is commonly applied in the following processes.
It plays an important role at branch points where fluid is divided from a main line to several pieces of equipment, or where several lines are gathered into one.
How does the weld type differ from the ferrule type?
Pipe fittings are broadly classified as weld type and ferrule type (Tri-Clamp connection). The weld type forms the piping as a continuously welded structure, so airtightness is excellent and dead space can be minimized. The ferrule type, by contrast, is easy to disassemble and reassemble, which makes maintenance convenient, but it has the characteristic of increasing the number of joints.
Using them on that basis is recommended.
In sanitary piping, welding quality is also very important. To keep oxide scale from forming on the inside, the interior of the pipe is thoroughly cleaned and finished after welding, so that hygienic condition is maintained and contamination is kept to a minimum.
The sanitary equal tee is the most fundamental fitting in sanitary piping. SUS304 precision casting, internal polishing, and a welded connection method together provide a stable piping configuration and excellent hygienic performance. Across industries where hygiene and reliability matter, including food and beverage, pharmaceutical, bio, chemical, and secondary battery manufacturing, it is used as a core component for branching and merging main piping. Consider the sanitary equal tee from VALVEPARK for your hygienic piping.

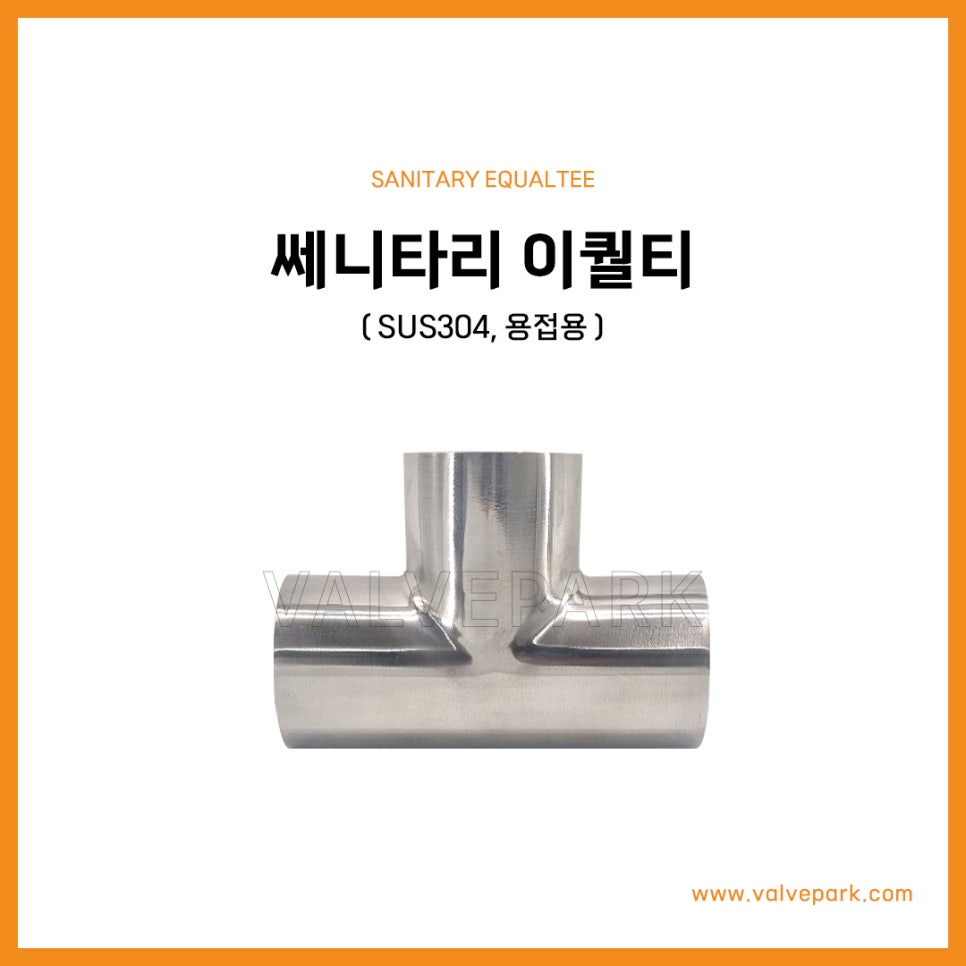

Sanitary Equal Tee
