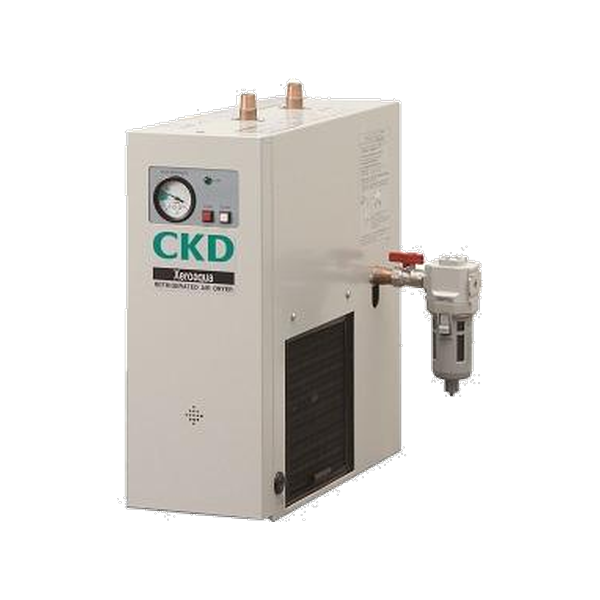

CKD GX Refrigerated Air Dryer (Xeroaqua)

The GX3200D and GX5200D (Xeroaqua) are air-cooled refrigeration air dryers that cool compressed air to remove moisture. The outlet pressure dew point is 10 °C, and the GX5200D is for high-temperature inlet air.

CKD GX Refrigerated Air Dryer (Xeroaqua)CKD GX Refrigerated Air Dryer (Xeroaqua) 2

Specifications

Working FluidCompressed air
Cooling MethodAir cooling
Applicable Air CompressorGX3200D 2.2 to 55 kW, GX5200D 2.2 to 75 kW
Inlet Air TemperatureGX3200D 5 to 50 °C, GX5200D 5 to 80 °C
Outlet Pressure Dew Point10 °C
RefrigerantR-134a / R-410A (by model)
Air Inlet/Outlet PortR1/2 to R2
