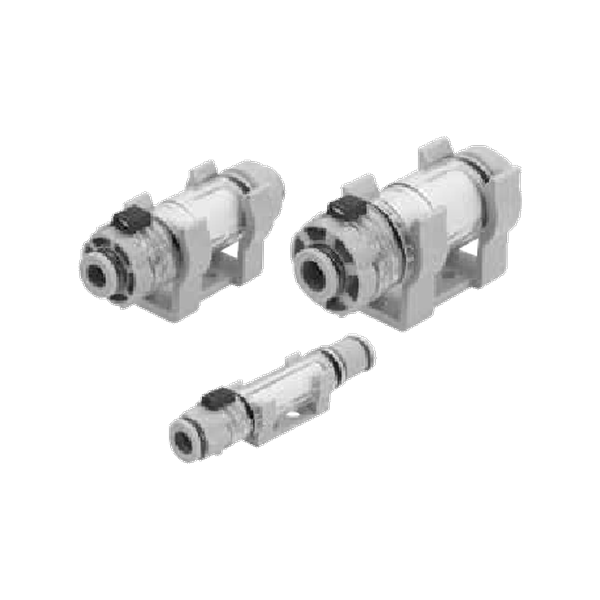

CKD FSL Inline Filter

Model: FSL100/FSL200/FSL500

The FSL is an inline filter installed in the middle of a pneumatic line. Its nominal filtration rating is 10 μm, it fits ø4 to ø10 tubes and it can also be used on vacuum lines at -100 kPa.

CKD FSL Inline Filter FSL100/FSL200/FSL500CKD FSL Inline Filter FSL100/FSL200/FSL500 2

Specifications

Working FluidAir
Port Sizeø4 to ø10
Ambient Operating Temperature0 to 50 °C (no freezing)
Maximum Working Pressure0.8 MPa (*1: value at 20°C)
Vacuum Working Pressure-100 kPa
Proof Pressure1.2 MPa
Nominal Filtration Rating10 μm (Collection efficiency 95%)
Body MaterialPBT
Filtration Area4.7 cm² (FSL100) / 7.5 cm² (FSL200) / 12.7 cm² (FSL500)

Frequently Asked Questions

What is the nominal filtration rating?
It is 10 μm with a collection efficiency of 95%.
What is the maximum working pressure?
It is 0.8 MPa at 20 °C; the allowable pressure varies with operating temperature.
How is the filter element replaced?
Release the internal pressure to atmosphere, unlock the slide lock and turn the fitting body to remove it. After replacement, align the lock positions and confirm that the slide lock is engaged.
