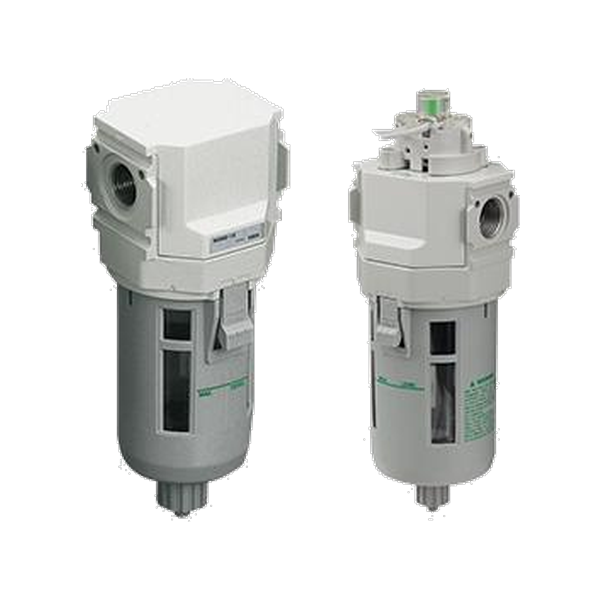

The M3000-W is an oil mist filter that removes oil mist from compressed air. The element can be chosen from M, S and X types, and the port size is 1/4 or 3/8.
| Model | M3000-W |
| Working Fluid | Compressed air |
| Working Pressure | 0.1 to 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Port Size | 1/4, 3/8 (Rc, NPT, G) |
| Filtration Rating | 0.01 μm (M type), 0.3 μm (S type), activated carbon adsorption (X type) |
| Secondary Side Oil Concentration | 0.01 mg/m³ or less (M type), 0.5 mg/m³ or less (S type), 0.003 mg/m³ or less (X type) |
| Max. Processing Flow Rate | 360 / 450 / 450 L/min (ANR) (M / S / X type, primary pressure 0.7 MPa) |
| Ambient/Fluid Temperature | 5 to 60 °C (M, S type), 5 to 30 °C (X type) |
| Drain Capacity | 45 cm³ |
| Weight | 0.28 kg |
