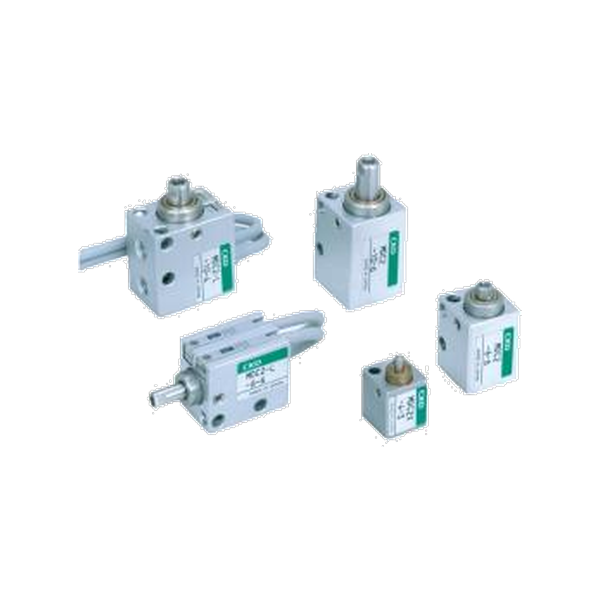

The MDC2 is a compact double acting, single rod direct cylinder with bores from ø4 to ø10. Strokes are 3 to 10 mm, and it runs without lubrication.
| Bore Size | ø4 / ø6 / ø8 / ø10 |
| Actuation Type | Double acting |
| Working Fluid | Compressed air |
| Maximum Working Pressure | 0.7 MPa |
| Min. Working Pressure | 0.2 / 0.15 / 0.1 MPa (by bore) |
| Proof Pressure | 1.05 MPa |
| Ambient Operating Temperature | -10 to 60 °C (no freezing) |
| Port Size | M3 (ø4 to ø8), M5 (ø10) |
| Operating Piston Speed | 50 to 500 mm/s |
| Cushion | None |
| Lubrication | Not required (when lubricating, use turbine oil Class 1 ISO VG32) |
| Stroke | 3 to 10 mm |
