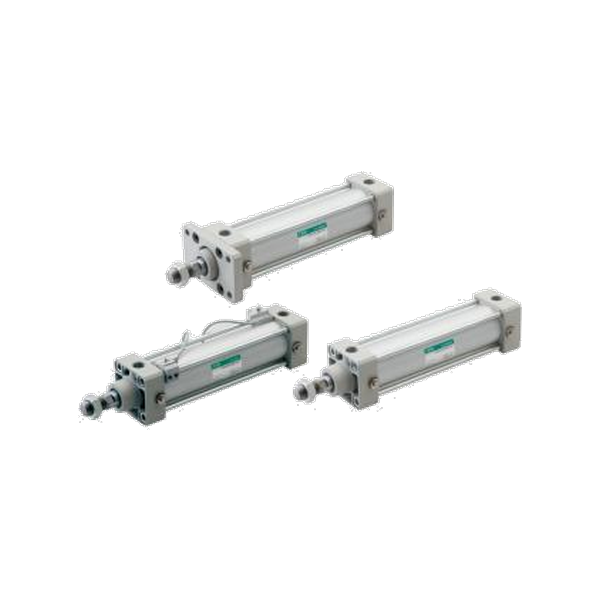

The SCA2 is a medium bore double acting, single rod pneumatic cylinder with bores from ø40 to ø100. Air cushions are standard, and it runs without lubrication.
| Bore Size | ø40 / ø50 / ø63 / ø80 / ø100 |
| Actuation Type | Double acting |
| Working Fluid | Compressed air |
| Maximum Working Pressure | 1.0 MPa |
| Min. Working Pressure | 0.05 MPa |
| Proof Pressure | 1.6 MPa |
| Ambient Operating Temperature | -10 to 60 °C (no freezing) |
| Port Size | Rc1/4 (ø40), Rc3/8 (ø50, ø63), Rc1/2 (ø80, ø100) |
| Operating Piston Speed | 50 to 1000 mm/s |
| Cushion | Air cushion |
| Lubrication | Not required (when lubricating, use turbine oil Class 1 ISO VG32) |
| Max. Stroke | 600 / 700 / 800 mm (by bore) |
