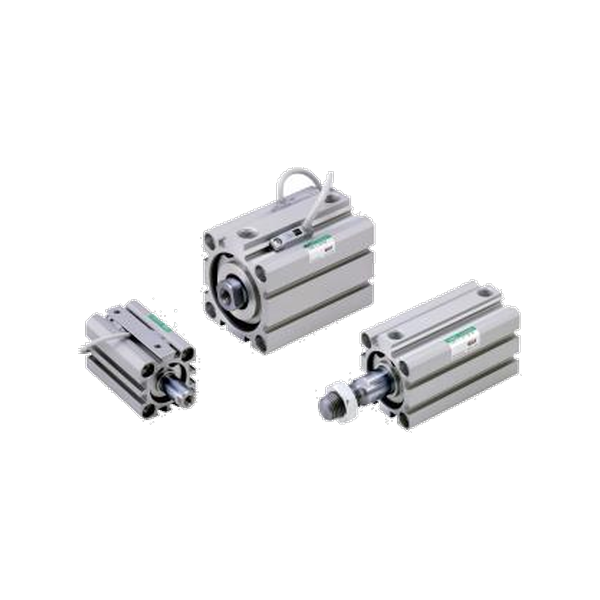

The SSD2 is a compact double acting, single rod cylinder with bores from ø12 to ø100. A rubber cushion is optional, and it runs without lubrication.
| Bore Size | ø12 to ø100 |
| Actuation Type | Double acting |
| Working Fluid | Compressed air |
| Maximum Working Pressure | 1.0 MPa |
| Min. Working Pressure | 0.1 / 0.05 MPa (by bore) |
| Proof Pressure | 1.6 MPa |
| Ambient Operating Temperature | -10 to 60 °C (no freezing) |
| Port Size | M5, Rc1/8, Rc1/4, Rc3/8 (by bore) |
| Operating Piston Speed | 50 to 500 / 50 to 300 mm/s (by bore) |
| Cushion | With / without rubber cushion selectable |
| Lubrication | Not required (when lubricating, use turbine oil Class 1 ISO VG32) |
| Stroke | 1 to 100 mm (by bore) |
