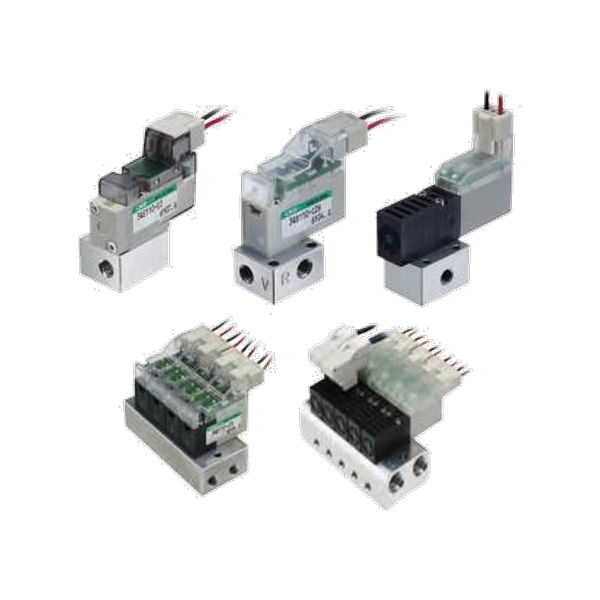

The 3Q is a compact 3-port solenoid valve with a direct acting poppet structure. It comes in the 3QE and 3QB series, can be piped individually or on a manifold, and has M5 ports.
| Series | 3QE / 3QB (manifold M3QE / M3QB) |
| Valve Structure | Direct acting poppet |
| Working Fluid | Compressed air |
| Maximum Working Pressure | 0.7 MPa (3QE) |
| Min. Working Pressure | 0 MPa (3QE) |
| Proof Pressure | 1.05 MPa |
| Ambient Operating Temperature | -5 to 55 °C (no freezing) (3QE) |
| Fluid Temperature | 5 to 55 °C (3QE) |
| Lubrication | Not required (use turbine oil Class 1 ISO VG32 when lubricating) |
| Port Size | M5 |
| Rated Voltage | 3, 5, 12, 24 VDC, 100 VAC (3QE) |
| Response Time | ON 6 ms / OFF 3 ms (3QE) |
| Weight | 16 g (3QE) |
| Body Material | Resin |
| Seat Material | NBR |
