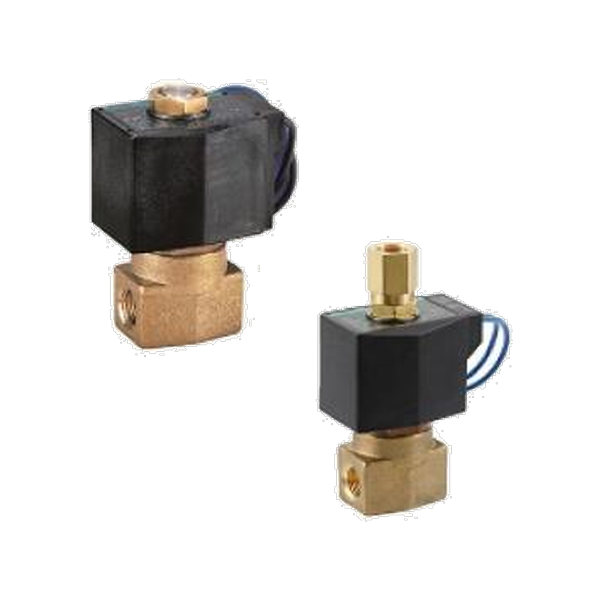

The AB41 is a direct acting poppet 2-port solenoid valve for lines carrying air, water, kerosene, oil or low vacuum. It is normally closed (NC), with Rc1/4 to Rc1/2 ports.
| Working Fluid | Air / low vacuum / water / kerosene / oil (50 mm²/s or less) |
| Valve Structure | Direct acting poppet, NC |
| Port Size | Rc1/4, Rc3/8, Rc1/2 |
| Orifice Size | 1.5 to 10 mm |
| Maximum Working Pressure | 5 MPa |
| Proof Pressure | 25 MPa (water pressure) |
| Fluid Temperature | -10 to 60 °C (no freezing) |
| Ambient Operating Temperature | -20 to 60 °C |
| Rated Voltage | 100 VAC, 200 VAC, 12 VDC, 24 VDC, 48 VDC, 100 VDC |
| Body/Seal Material | Copper alloy / NBR (standard) |
| Mounting Orientation | Unrestricted |
