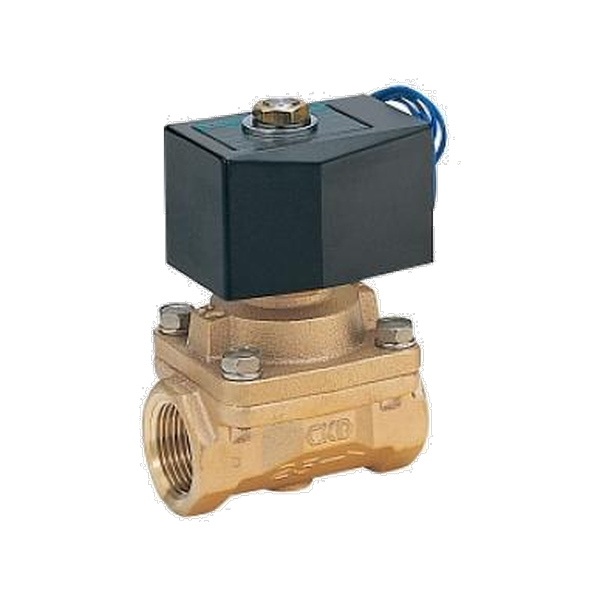

The APK11 is a general purpose 2-port solenoid valve with a pilot kick poppet structure. It is an NC type that stays closed when de-energized, is used for air, low vacuum, water, kerosene and oil, and has Rc1/4 to Rc1 ports.
| Working Fluid | Air / low vacuum (1.33x10³ Pa (abs)) / water / kerosene / oil (20 mm²/s or less) |
| Valve Structure | Pilot kick poppet, piston drive, NC |
| Working Pressure Differential | 0 to 1.0 MPa |
| Maximum Working Pressure | 2 MPa |
| Proof Pressure | 4 MPa (water pressure) |
| Fluid Temperature | -10 to 60 °C (no freezing) |
| Ambient Operating Temperature | -10 to 60 °C |
| Thermal Class | Class 130 (B) |
| Valve Seat Leakage | 0.2 cm³/min (ANR) or less (air) |
| Body/Seal Material | Bronze / NBR |
| Port Size | Rc1/4, Rc3/8, Rc1/2, Rc3/4, Rc1 |
| Rated Voltage | 100 VAC, 200 VAC, 12 VDC, 24 VDC, 48 VDC |
