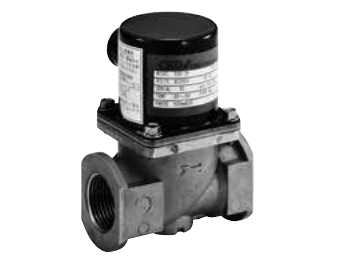

DSG is a quick open shut off valve for low pressure gas. It is NC type (open when energized) for city gas, natural gas and LPG. Ports are Rp1/2, Rp3/4 and Rp1, and the working pressure is up to 5 kPa. The DC driven actuator with rectifier eliminates noise and coil burnout, and a strainer is built in.
| Working Fluid | City gas / natural gas / LPG |
| Actuation | NC (open when energized), quick open |
| Working Pressure | 0 to 5 kPa |
| Flow Rate (natural gas specific gravity 0.65, ΔP = 0.25 kPa, m³/h (ANR)) | DSG-15: 9.8 / DSG-20: 15.0 / DSG-25: 20.0 |
| Cv | DSG-15: 6.6 / DSG-20: 10.1 / DSG-25: 13.4 |
| Flow Rate Conversion Coefficient (multiply flow rate in table) | Natural gas (13A) 1.0, city gas (6B/6C) 1.09, propane 0.63, butane 0.57, butane-air (6A) 0.72 |
| Rated Voltage | 100 VAC (+10/-15%), 200 VAC (+10/-15%) (common to 50 and 60 Hz) |
| Power Consumption (apparent power) | 16 VA |
| Ambient Temperature | -20 to 60 °C (no freezing) |
| Opening Time / Closing Time | 0.5 s or less / 1.0 s or less |
| Frequency | 30 cycles/min. or less |
| Mounting Orientation | Vertical direction with the coil up or horizontal direction with the coil horizontal |
| Connection / Port Size | Screw-in (Rp) / DSG-15: Rp1/2, DSG-20: Rp3/4, DSG-25: Rp1 |
| Weight | DSG-15: 1.0 kg / DSG-20: 1.2 kg / DSG-25: 1.2 kg |
| Proof Pressure | 0.1 MPa |
| Degree of Protection | IP51 equivalent (IP21 equivalent with HP terminal box) |
