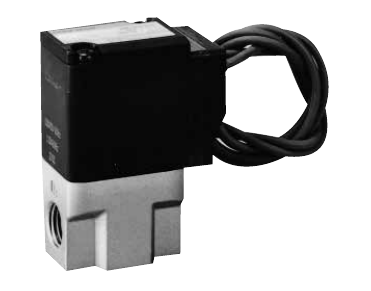

CKD FGB Direct Acting 2-Port Solenoid Valve for Dry Air (Special Purpose, Single Unit)

FGB is an NC direct acting 2-port solenoid valve for dry air, inert gas and low vacuum. It opens when energized, with Rc1/8 to Rc1/2 ports.

CKD FGB Direct Acting 2-Port Solenoid Valve for Dry Air (Special Purpose, Single Unit)CKD FGB Direct Acting 2-Port Solenoid Valve for Dry Air (Special Purpose, Single Unit) 2

Specifications

Working FluidDry air, inert gas, low vacuum (1.33×10² Pa (abs))
Valve StructureDirect acting poppet, NC
Working Pressure Differential0 to 1.4 MPa (refer to the max. working pressure differential in the individual specifications)
Proof Pressure2.1 MPa (1.5 MPa for FGB11/21) (water pressure)
Fluid Temperature-10 to 40 °C (no freezing)
Ambient Temperature-20 to 40 °C
Thermal ClassClass 130 (B)
Valve Seat Leakage0.2 cm³/min (ANR) or less
Degree of ProtectionIP65 or equivalent (IP61 or equivalent for T type terminal box)
Port SizeRc1/8, Rc1/4, Rc3/8, Rc1/2
Orifice Size1.5~10 mm
Weight0.13~0.62 kg
Mounting OrientationUnrestricted
Rated Voltage100 VAC, 200 VAC, 24 VDC, 12 VDC (100 VAC also usable at 110 VAC (60 Hz), 200 VAC also usable at 220 VAC (60 Hz))
