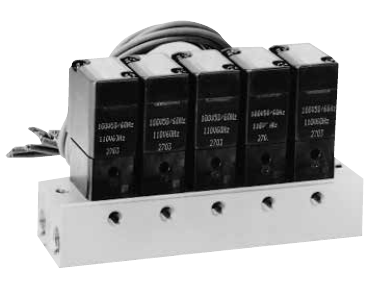

GFAG is a universal direct acting 3-port manifold solenoid valve dedicated to compressed air. It uses common supply and common exhaust, with M5, Rc1/8 and Rc1/4 ports.
| Working Fluid | Compressed air |
| Valve Structure | Direct acting poppet, 3-port, universal, common supply/common exhaust |
| Working Pressure Differential | 0 to 1.2 MPa (refer to the max. working pressure differential in the individual specifications) |
| Proof Pressure | 1.8 MPa (1.5 MPa for GFAG11/GFAG21/GFAG31) (water pressure) |
| Fluid Temperature | AC -10 to 60 °C, DC -10 to 40 °C (no freezing) |
| Ambient Temperature | -20 to 40 °C |
| Thermal Class | Class 130 (B) |
| Valve Seat Leakage | 0.2 cm³/min (ANR) or less |
| Degree of Protection | IP65 or equivalent (IP61 or equivalent for T type terminal box, IP40 or equivalent for GFAG11 compact terminal box) |
| Port Size | Individual (2-port) side: M5, Rc1/8, Rc1/4; common (3-port) side: Rc1/8, Rc1/4 |
| Orifice Size | 0.8~4 mm |
| Mounting Orientation | Unrestricted |
| Rated Voltage | 100 VAC, 200 VAC, 24 VDC, 12 VDC (100 VAC also usable at 110 VAC (60 Hz), 200 VAC also usable at 220 VAC (60 Hz)) |
