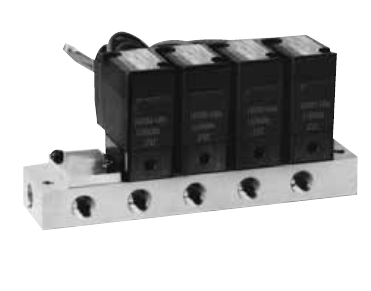

GFGB is an NC direct acting 2-port manifold solenoid valve for dry air, inert gas and low vacuum. It comes in common supply (port C pressurization) and individual supply (port A pressurization) configurations.
| Working Fluid | Dry air, inert gas, low vacuum (1.33×10² Pa (abs)) |
| Valve Structure | Direct acting poppet, NC, manifold |
| Working Pressure Differential | 0 to 1.4 MPa (refer to the max. working pressure differential in the individual specifications) |
| Proof Pressure | 2.1 MPa (1.5 MPa for GFGB2) (water pressure) |
| Fluid Temperature | -10 to 40 °C (no freezing) |
| Ambient Temperature | -20 to 40 °C |
| Thermal Class | Class 130 (B) |
| Valve Seat Leakage | 0.2 cm³/min (ANR) or less |
| Degree of Protection | IP65 or equivalent (IP61 or equivalent for T type terminal box) |
| Port Size | A port: Rc1/8, Rc1/4; C port: Rc1/8, Rc3/8 |
| Orifice Size | 1.5~7 mm |
| Mounting Orientation | Unrestricted |
| Rated Voltage | 100 VAC, 200 VAC, 24 VDC, 12 VDC (100 VAC also usable at 110 VAC (60 Hz), 200 VAC also usable at 220 VAC (60 Hz)) |
