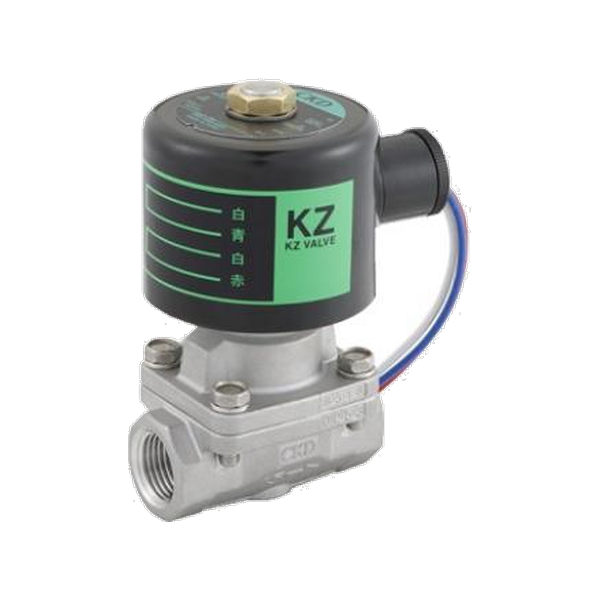

Model: KZV3
A pilot-operated piston-drive 2-port solenoid valve for steam, water, and oil.
| Port Size | Rc1/2 to Rc2 (15A to 50A) |
| Port sizes | Rc1/2 to Rc2 (15A to 50A) |
| Working Fluid | Steam, water, and oil |
| Working differential pressure | 15A-25A: 0 to 1 MPa (oil 0 to 0.7); 32A-50A: 0.05 to 1 MPa (oil 0.05 to 0.6) |
| Fluid temperature | 5 to 180 °C |
| Ambient Operating Temperature | -10 to 60 °C |
| Protection Rating | IP65 equivalent; IP21 equivalent with 4M/4N terminal box |
