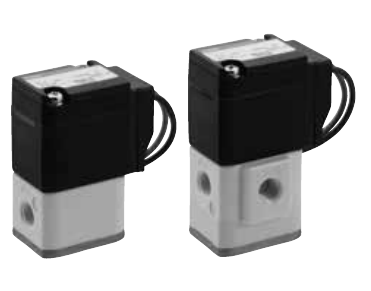

MEB2 is an NC 2-port and MEG2 is a universal 3-port metal-free direct acting solenoid valve. They are used for water, pure water and chemical liquids, with Rc1/8 ports.
| Working Fluid | Water / pure water / chemical liquids (fluids that do not corrode wetted part materials) |
| Valve Structure | Direct acting, metal-free, NC (2-port) / universal (3-port) |
| Working Pressure | With IN pressurized: IN 0 to 0.2 MPa / OUT 0 to 0.1 MPa |
| Proof Pressure | 0.3 MPa (water pressure) |
| Fluid Temperature | 0 to 60 °C (no freezing) |
| Ambient Temperature | 0 to 50 °C |
| Valve Seat Leakage | 0 cm³/min (water pressure) |
| Port Size | Rc1/8 |
| Orifice Size | 3.0 mm or equivalent |
| Cv | 0.18 |
| Power Consumption | 5.5 W |
| Weight | MEB2: 0.22 kg, MEG2: 0.24 kg |
| Mounting Orientation | Unrestricted |
| Rated Voltage | 24 VDC, 100 VAC (50/60 Hz) |
