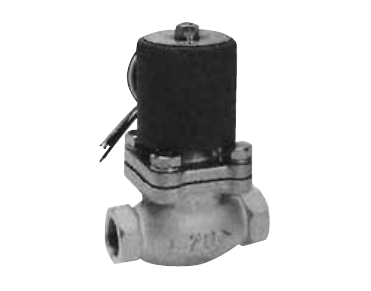

PKA is an NC pilot kick 2-port solenoid valve dedicated to air. It operates at zero differential pressure and in low vacuum, with Rc1/2, Rc3/4, Rc1 and 32 to 50 flange ports. The body is bronze as standard, with a stainless steel body option.
| Working Fluid | Air |
| Valve Structure | Pilot kick poppet, NC |
| Working Pressure Differential | 0 to 0.7 MPa (0 to 0.5 MPa for 50A) |
| Proof Pressure | 1.5 MPa (1.0 MPa for 50A) (water pressure) |
| Fluid Temperature | 5 to 60 °C |
| Ambient Temperature | Rc1/2 to Rc1: 0 to 65 °C; 32 and 40 flange: 0 to 45 °C; 50 flange: 0 to 40 °C |
| Thermal Class | Class 130 (B) |
| Valve Seat Leakage | Rc1/2 to Rc1: 1 cm³/min or less (400 or less for stainless steel bodies); flange: 2 cm³/min or less |
| Port Size | Rc1/2, Rc3/4, Rc1, 32 / 40 / 50 flange |
| Orifice Size | 15, 20, 25, 35, 40, 50 mm |
| Body Material | Bronze (option: stainless steel, not available for 32, 40, 50 flange) |
| Weight | 1.8, 2.2, 2.9, 9, 10, 13 kg |
| Mounting Orientation | Vertical with the coil on top only |
| Rated Voltage | 100 VAC, 200 VAC (50/60 Hz) |
