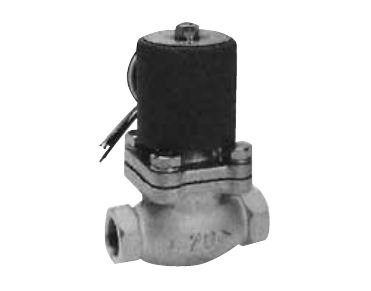

PKS is an NC pilot kick 2-port solenoid valve dedicated to steam. It operates even at zero differential pressure, with Rc1/2, Rc3/4, Rc1 and 32 to 50 flange ports.
| Working Fluid | Steam |
| Valve Structure | Pilot kick poppet, NC |
| Working Pressure Differential | 0 to 0.7 MPa (0 to 0.5 MPa for 50A) |
| Proof Pressure | 1.5 MPa (1.0 MPa for 50A) (water pressure) |
| Fluid Temperature | 5 to 175 °C (5 to 160 °C for 50A) |
| Ambient Temperature | 0 to 70 °C |
| Thermal Class | Class 180 (H) |
| Valve Seat Leakage | 400 cm³/min or less (at pneumatic pressure 0.05 to 0.7 (0.5) MPa) |
| Port Size | Rc1/2, Rc3/4, Rc1, 32 / 40 / 50 flange |
| Orifice Size | 15, 20, 25, 35, 40, 50 mm |
| Cv | 4, 7, 12, 22, 30, 48 |
| Weight | 1.8, 2.2, 2.9, 9, 10, 13 kg |
| Mounting Orientation | Vertical with the coil on top only |
| Rated Voltage | 100 VAC, 200 VAC (50/60 Hz) |
