CKD PV5G/PV5 Pilot 5-Port ISO Solenoid Valve

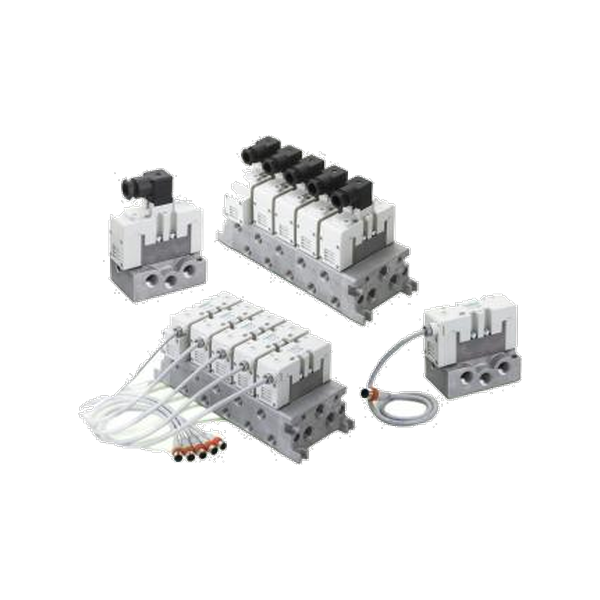

The PV5G is a pilot operated soft spool 5-port solenoid valve that complies with the ISO mounting standard. It comes in two sizes, the PV5G-6 (ISO size 1) and the PV5G-8 (ISO size 2), and is wired through a DIN terminal box.

CKD PV5G/PV5 Pilot 5-Port ISO Solenoid ValveCKD PV5G/PV5 Pilot 5-Port ISO Solenoid Valve 2

Specifications

Valve StructurePilot operated soft spool valve
Working FluidCompressed air
Maximum Working Pressure1.0 MPa
Min. Working Pressure0.15 MPa (3-position 0.20 MPa)
Proof Pressure1.50 MPa
Ambient Operating Temperature-5 to 60 °C (no freezing)
Fluid Temperature5 to 60 °C
LubricationNot required
Protection RatingIP65 or equivalent
Rated Voltage100 VAC, 110 VAC, 200 VAC, 220 VAC, 12 VDC, 24 VDC
Thermal ClassClass B
Port SizeRc1/4, Rc3/8 (PV5G-6) / Rc3/8, Rc1/2, Rc3/4 (PV5G-8)
Body MaterialAluminum alloy
