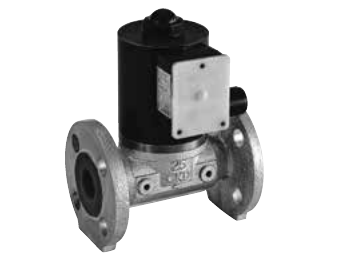

VNM is a lightweight, compact medium pressure gas shut off valve driven by a solenoid valve. It is NC type (open when energized) for city gas, natural gas and LPG. It has a 25A JIS flange and a working pressure up to 0.3 MPa, with a connection port for a pressure switch or pressure gauge and a power indicator lamp.
| Working Fluid | City gas / natural gas / LPG |
| Actuation | NC (open when energized), quick open |
| Working Pressure | 0 to 0.3 MPa |
| Flow Rate (natural gas specific gravity 0.65, ΔP = 0.25 kPa, m³/h (ANR)) | 19 |
| Cv | 12.8 |
| Flow Rate Conversion Coefficient (multiply flow rate in table) | Natural gas (13A) 1.0, city gas (6B/6C) 1.09, propane 0.63, butane 0.57, butane-air (6A) 0.72 |
| Rated Voltage | 100 VAC ±10%, 200 VAC ±10% (common to 50 and 60 Hz) / options: 110 VAC, 220 VAC, 24 VDC |
| Power Consumption (apparent power) | 82 VA |
| Ambient Temperature | -20 to 60 °C (no freezing) |
| Opening Time / Closing Time | 0.5 s or less / 1.0 s or less |
| Frequency | 30 cycles/min. or less |
| Mounting Orientation | Vertical direction with the coil up or horizontal direction with the coil horizontal |
| Connection / Port Size | Flange (JIS10KRF) / 25A |
| Weight | 7.7 kg |
| Proof Pressure | 0.5 MPa |
| Degree of Protection | IPX4 |
| Option | With operation confirmation micro switch (E) |
