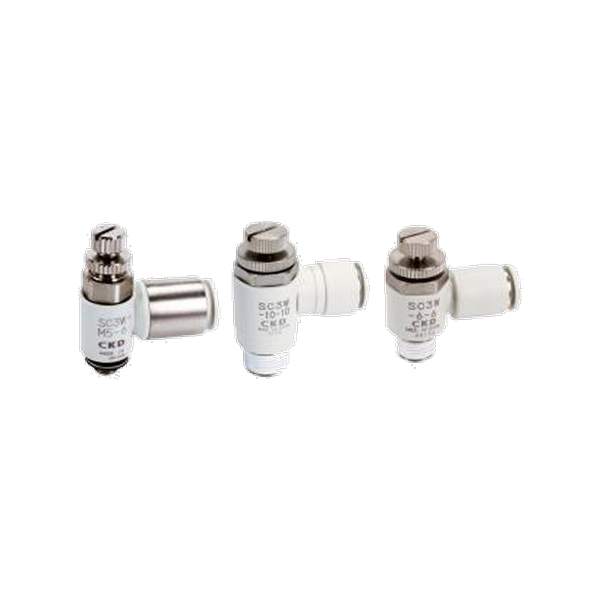

The SC3W is an elbow speed controller with a push-in fitting. It adjusts the air flow to and from a pneumatic cylinder to set its speed, with M3, M5 and R1/8 to R1/2 ports.
| Working Fluid | Compressed air |
| Maximum Working Pressure | 1.0 MPa |
| Min. Working Pressure | 0.05 MPa |
| Proof Pressure | 1.5 MPa |
| Fluid Temperature | 5 to 60 °C (no freezing) |
| Ambient Operating Temperature | 0 to 60 °C (no freezing) |
| Port Size | M3, M5, R1/8, R1/4, R3/8, R1/2 |
| Applicable Tube O.D. | ø3.2 to ø12 |
