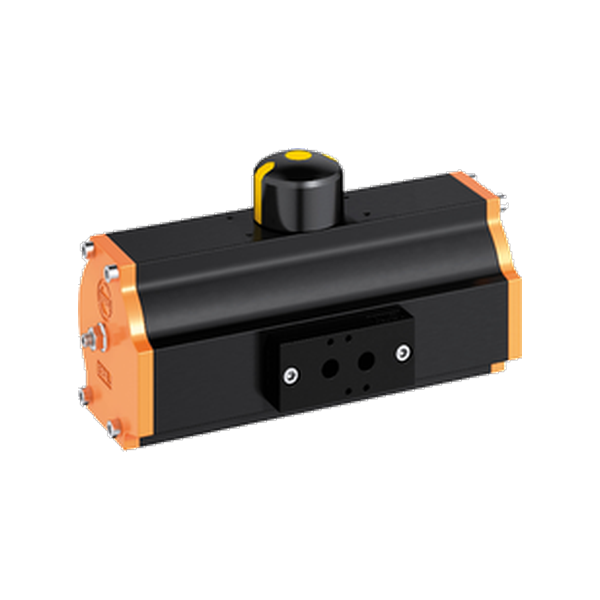

| Design | Scotch Yoke, 90° rotation angle |
| Control Pressure | min 2.5bar / max 8bar |
| Explosion-Proof Certification | ATEX 2014/34/EU |
| Operating Temperature Range | -20 °C to +80 °C (standard), -40 °C to +80 °C (low temperature), -15 °C to +120 °C (high temperature) |
| Torque Range | 27 - 9768 Nm |
| Control Medium | Filtered dry compressed air or inert gas, particles max. 40 μm |
| Coating | CS3 or optional CS5M |
| Interface | EN ISO 5211, VDI/VDE 3845 (NAMUR), DIN EN 15714-3 |
| SIL | SIL 2, SIL 3 (redundant) IEC 61508 |
