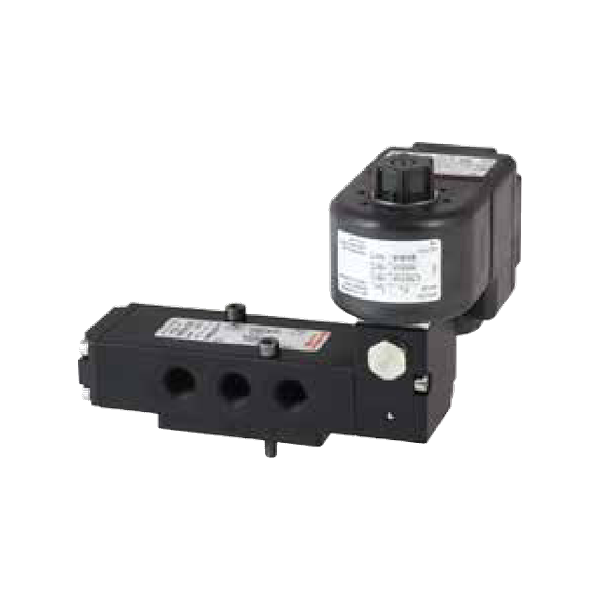

Herion 97105 NAMUR Electromagnetic Valve

Model: 97105

Herion 97105 NAMUR is an electromagnetically actuated, indirectly controlled 5/2 and 5/3 spool-valve series. Port, actuation, supply, and solenoid conditions must be confirmed for the selected model.

Features

Herion 97105 NAMUR Electromagnetic Valve 97105Herion 97105 NAMUR Electromagnetic Valve 97105 2

Specifications

Pressure condition by supplyInternal air supply: 2.5 to 8 bar; external air supply: 0 to 8 bar (G1/2 connection, 1/2 NPT connection, or low-power pilot system only)
Mediumfiltered, non-lubricated and dried compressed air, instrument air, nitrogen and other non-flammable neutral dry fluids
Valve temperature conditionSNBR: -40 to +65°C; HNBR: -25 to +80°C; depends on solenoid system
Voltage conditionStandard voltages (±10%): 24 V d.c., 230 V a.c.; other voltages on request

Frequently Asked Questions

How are pressure conditions distinguished?
Internal air supply: 2.5 to 8 bar; external air supply: 0 to 8 bar (G1/2 connection, 1/2 NPT connection, or low-power pilot system only)
Which media are listed?
filtered, non-lubricated and dried compressed air, instrument air, nitrogen and other non-flammable neutral dry fluids
Can voltage and temperature be fixed as one value?
No. Standard voltages are 24 V d.c. and 230 V a.c.; temperature and protection conditions depend on the solenoid system.
