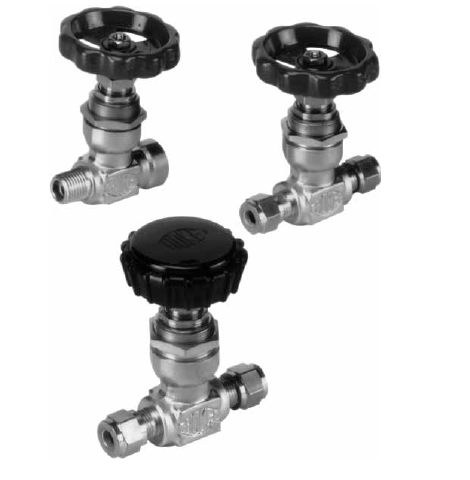

A 1700 series needle valve for fine flow control in instrument lines. It has a forged body and integral bonnet. A non-rotating hard stem tip or a replaceable PCTFE stem tip reduces galling, and Dyna-Pak packing below the stem threads prevents fugitive emissions. It is used in panel board instrumentation, pressure gauge valves, sampling systems, research laboratories, oxygen service, and corrosive or high-pressure service.
| Body Material | SS316 or MONEL |
| Maximum Operating Pressure | 6000 psig (414 bar) @ 70°F (21°C) |
| Operating Temperature Range | -65°F to 450°F (-54°C to 232°C, metal stem tip); -20°F to 250°F (-29°C to 121°C, PCTFE stem tip) |
| Orifice | 0.187˝ (4.8 mm) |
| Cv Factor | 0.31-0.45 |
| Stem Tip | Hard: 17-4PH stainless steel (SS316 type) / MONEL (MONEL type); soft: PCTFE |
| Stem Packing | TFE/SS316 wafers (TFE/MONEL wafers for MONEL type) |
| Handle Material | 1711 series aluminum / 1751 series ABS |
| End Connection | 1/4˝ and 3/8˝ GYROLOK, 8 mm GYROLOK, 1/4˝ male NPT, 1/4˝ female NPT |
| Panel Mounting | Standard on all models (panel hole 22.6 mm diameter, panel thickness 6.4 mm max.) |
