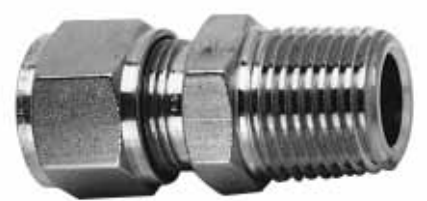

The HOKE GYROLOK male thermocouple connector holds a thermocouple in the tube connection and mounts it into a threaded port. CMT is for fractional tubes, and CMT/ME (NPT) and CMT/MC (RT tapered) are for metric tubes.
| Type | Male thermocouple connector: CMT (fractional tube) / CMT/ME, CMT/MC (metric tube) |
| Connection | Mounts into a threaded port (CMT and CMT/ME: NPT; CMT/MC: RT tapered) |
| Part Numbers | CMT: 1CMT1[ ] to 20CMT20[ ] / CMT/ME: 6CMT2[ ]ME to 8CMT4[ ]ME / CMT/MC: 6CMT2[ ]MC to 8CMT4[ ]MC |
| Material (GYROLOK series) | Material code in the [ ] of the part number: brass BR, 304/304L stainless steel, 316/316L stainless steel, Monel M, Hastelloy C-276 HC, Duplex 2205 DX3, Inconel Alloy 625, Inconel Alloy 825, Super Duplex 2507 D50, titanium TI, 254 SMO 6MO (available materials may vary by fitting type and size) |
| CMT Dimensions by Size (inches) | tube 1/16" x thread 1/16": A .97 / tube 1/16" x thread 1/8": A 1.13 / tube 1/16" x thread 1/4": A 1.22 / tube 1/8" x thread 1/8": A 1.22 / tube 1/8" x thread 1/4": A 1.44 / tube 3/16" x thread 1/8": A 1.27 / tube 3/16" x thread 1/4": A 1.50 / tube 1/4" x thread 1/8": A 1.33 / tube 1/4" x thread 1/4": A 1.52 / tube 1/4" x thread 3/8": A 1.58 / tube 1/4" x thread 1/2": A 1.80 / tube 3/8" x thread 1/4": A 1.64 / tube 3/8" x thread 3/8": A 1.63 / tube 3/8" x thread 1/2": A 1.84 / tube 1/2" x thread 1/2": A 1.97 / tube 3/4" x thread 3/4": A 2.08 / tube 1 1/4" x thread 1 1/4": A 3.06 |
| CMT/ME and CMT/MC (shared rows) Dimensions by Size (mm) | tube 6 mm x thread 1/8": A 34.8 / tube 6 mm x thread 1/4": A 39.5 / tube 8 mm x thread 1/4": A 39.8 |
