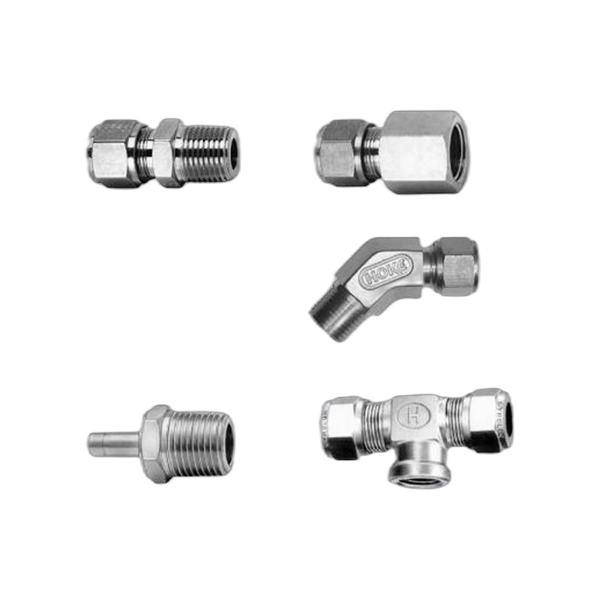

HOKE GYROLOK Tube Fittings

Model: GYROLOK

HOKE GYROLOK is a tube-fitting product family. The registered source leaves show Male Connector, Bulkhead Connector and Male Elbow forms. Connection targets and dimension units must remain scoped to each source table.

Features

• Male Connector, Bulkhead Connector and Male Elbow families are shown
• Fractional and metric dimension tables are separated by the source model scope
• Dimensions are for reference only and subject to change

Specifications

Frequently Asked Questions

Which GYROLOK fitting forms appear in the registered source leaves?

The registered source leaves show Male Connector, Bulkhead Connector, SAE Male Connector, and Male Elbow forms.

What threads does the fractional-tube Male Connector connect to?

For fractional tube, CM connects to female NPT threads and CM/EC connects to female RT threads.

What threads do the metric-tube Male Connectors connect to?

CM/ME and CM/MC are marked as connecting metric tube with NPT or RT tapered threads.

Are the catalog dimensions final specifications?

The registered source leaves mark dimensions for reference only and subject to change.
