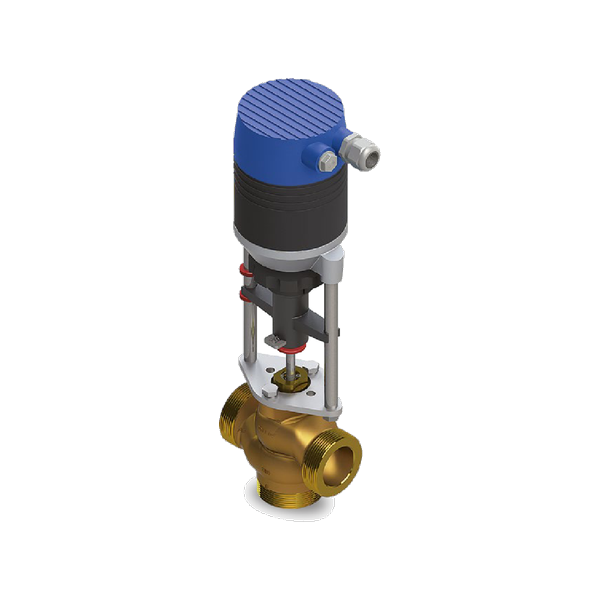

HORA Bronze Control Valve (Threaded)

A bronze (CC499K) control valve for regulating water at 0 to +150 °C in HVAC systems. It covers DN 15-50 at PN 16 with external threads to ISO 228/1.

HORA Bronze Control Valve (Threaded)HORA Bronze Control Valve (Threaded) 2

Specifications

SizeDN 15 - DN 50
Working PressurePN 16
End ConnectionThreaded, male thread per ISO 228/1
Body MaterialBronze CC499K
Plug/Stem MaterialBrass CW614N / Cr-Stahl 1.4021
Stem SealO-rings made of EPDM
Leakage ClassEN 1349 - seat leakage VI G 1 (tight sealing)
Application RangeHVAC systems using water from 0 to +150 °C; with stem heater, media temperatures down to -15 °C; above 130 °C install in horizontal position
