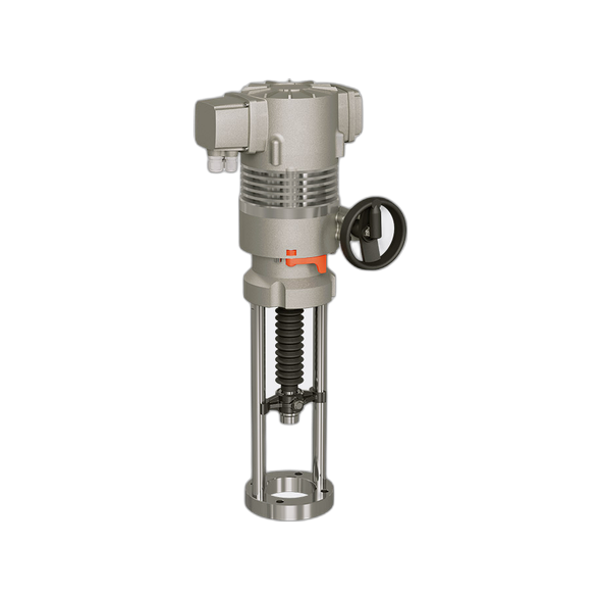

An electric linear actuator (MC403 to MC1503) for two-way and three-way valves, with 4-15 kN of thrust. A microprocessor self-calibrates on start-up and LEDs show the actuator status.
| Actuating Force | 4-15kN |
| Series | MC403/MC503/MC1003/MC1503 |
| Stroke | max. 60 mm (MC403, MC503), max. 80 mm (MC1003, MC1503) |
| Power Supply | 24 VAC or 230 VAC ±10 %, 50/60 Hz |
| Protection Rating | IP 54 |
| Ambient Operating Temperature | -10...+60 °C (MC1503: -10...+50 °C) |
