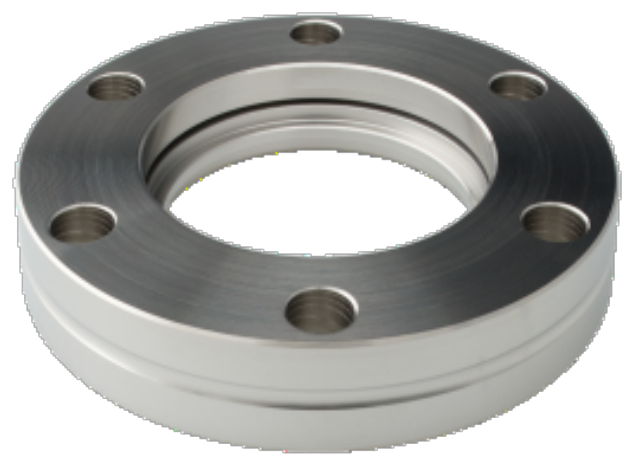

The INFICON CF rotatable welding flange (stainless steel 304L) forms the CF connection on ultra-high vacuum lines. It comes in seven sizes from DN 16 to DN 250 and is designed for ultra-high vacuum down to 1×10⁻¹² mbar and bakeout up to 400 °C.
| Connection | CF (DN 16 / DN 40 / DN 63 / DN 100 / DN 160 / DN 200 / DN 250) |
| Manufacturing Standards | Manufactured to ISO 3669 and TS/ISO 3669-2 |
| Material | Stainless steel 304L (1.4306) |
| Vacuum Range | Designed for ultra-high vacuum applications down to 1×10⁻¹² mbar |
| Bakeout Temperature | Up to 400 °C |
| Flange Thickness (mm) | DN 16: 7.5 / DN 40: 13 / DN 63: 17.5 / DN 100: 20 / DN 160: 22 / DN 200: 24.5 / DN 250: 24.5 |
| Part Numbers | DN 16: 213-041 / DN 40: 213-042 / DN 63: 213-043 / DN 100: 213-044 / DN 160: 213-045 / DN 200: 213-046 / DN 250: 213-047 |
| Environmental Compliance | Compliant with RoHS Directive 2011/65/EU |
