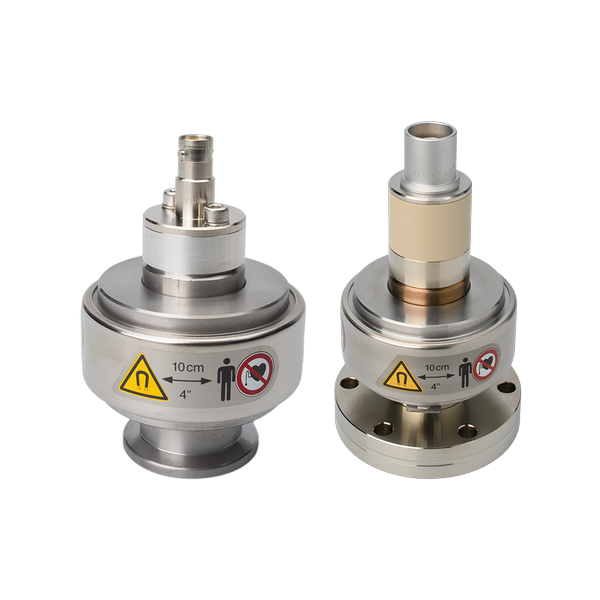

MAG050, MAG060 and MAG070 are passive inverted magnetron cold cathode gauges used with VGC094 and VGC083C controllers. MAG060 and MAG070 have an all-metal design for high bakeout temperatures and radiation environments.
| Measuring System | Cold cathode ionization (inverted magnetron) |
| Measuring Range | 2×10⁻⁹ … 5×10⁻³ mbar (MAG050) / 1×10⁻¹⁰ … 5×10⁻³ mbar (MAG060) / 1×10⁻¹¹ … 5×10⁻³ mbar (MAG070) |
| Accuracy | 30% of reading |
| Bakeout | 150 °C (MAG050) / 250 °C (MAG060·070) |
| Flange Connection | DN 25·40 ISO-KF / DN 40 CF-F |
| Protection Rating | IP40 |
| Repeatability (N₂, typical) | 5% of reading |
| Max. Cable Length | MAG050/060 ≤100 m, MAG070 ≤500 m |
| Radiation Resistance | MAG060/070 1×10⁷ Gy |
| Overpressure | ≤9 bar (inert gases, limited) |
| Electrical Connection | MAG050/060 coaxial (SHV), MAG070 triaxial |
| Weight | 600 g (KF), 850 g (CF-F) |
