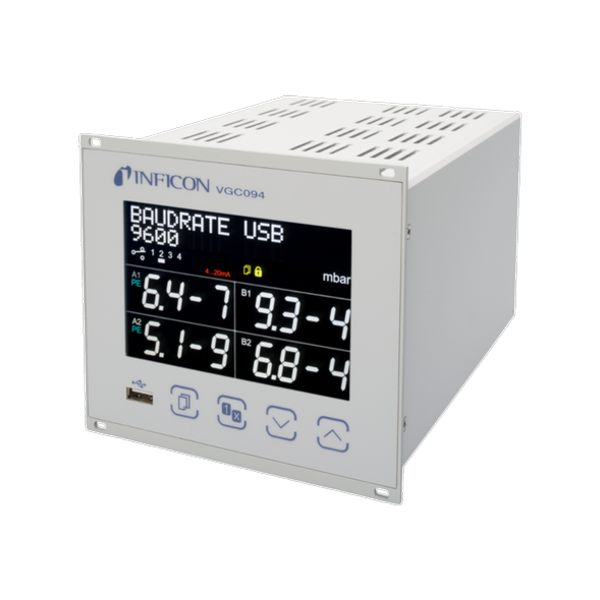

VGC094 is a 4-channel vacuum gauge controller that reads up to 4 passive gauge heads together. Selectable measurement boards connect Pirani and cold cathode gauges, data can be logged to a USB drive, and it communicates via RS485 and Ethernet.
| Measuring Channels | 4 |
| Measuring Range | 1×10⁻¹¹ … 1000 mbar |
| Compatible Gauges | PSG010·017·018 / MAG050·060·070·084 |
| Display | LCD (LED backlight) |
| Setpoint Relay | 4 |
| Analog Output | 0 … 10 V / 4 … 20 mA |
| Interface (digital) | USB / RS485 / Ethernet |
| Supply Voltage | 100 … 240 V (ac), 50 … 60 Hz |
| Operating Temperature (in operation) | +5 … +50 °C |
| Weight | 1.45 kg (3.2 lb) |
| Power Consumption | ≤65 W |
| Storage Temperature | -20 … +60 °C |
| Dimensions | Front 141.9 × 128.5 mm, depth 189.5 mm |
| Setpoint Relays | 4 + 1 error relay, contacts 30 V(dc,ac)/1.5 A |
