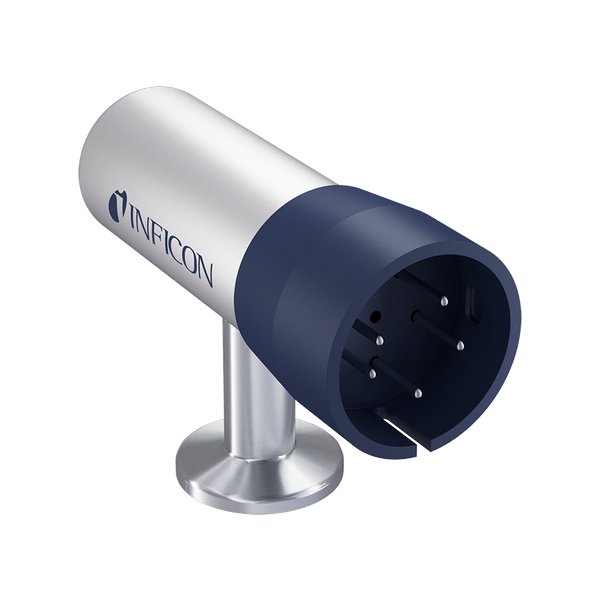

PGE050 is a passive vacuum gauge with a convection-enhanced Pirani sensor, used with VGC031 and VGC083 controllers. It reads accurately even near atmospheric pressure and withstands vibration and shock.
| Measuring System | Pirani, convection-enhanced |
| Measuring Range | 1.3×10⁻⁴ … 1333 mbar |
| Accuracy (530…1333mbar) | ±2.5 % of reading |
| Operating Temperature (in operation) | 0 … +50 °C |
| Bakeout | ≤150 °C |
| Material (filament) | Gold-plated tungsten |
| Flange Connection | DN 16·25·40 ISO-KF / DN 16·40 CF-R / 4·8 VCR female / 1/8" NPT |
| Repeatability | ±2% (of reading, N2) |
| Storage Temperature | -40…+70 °C |
| Humidity | ≤95% (non-condensing) |
| Weight | 85 g |
| Internal Volume | 26 cm3 |
