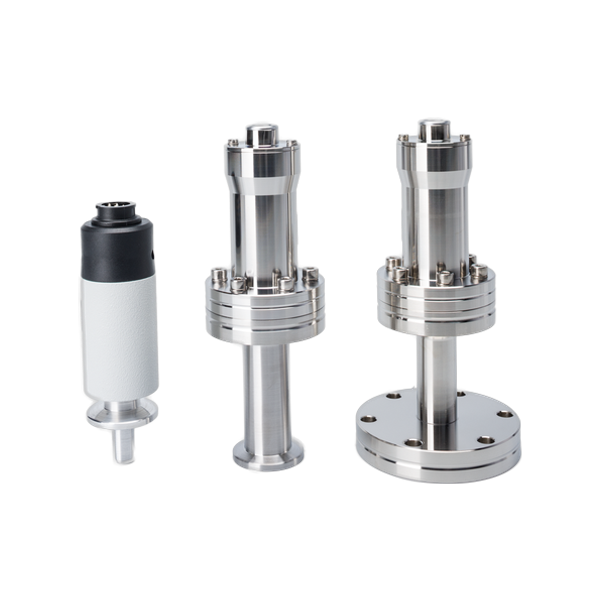

PSG010, PSG017 and PSG018 are passive Pirani gauge heads used with the VGC094 controller. PSG010 is for general industrial use, while PSG017 and PSG018 have metal seals for high bakeout temperatures and radiation environments.
| Measuring System | Pirani |
| Measuring Range | 8×10⁻⁴ … 1000 mbar |
| Bakeout | 100 °C (PSG010) / 250 °C (PSG017·018) |
| Flange Connection | DN 10 ISO-KF (PSG010) / DN 16 ISO-KF / DN 16·40 CF-F |
| Protection Rating | IP 40 |
| Weight | PSG010 0.14 kg / PSG017 1.2 kg / PSG018 1.2 kg |
| Radiation Resistance | PSG017/018 1×10⁶ Gy |
| Overpressure | ≤9 bar (inert gases, limited) |
| Operating Temperature | PSG010 0…+70 °C, PSG017/018 0…+80 °C (high-temperature cable 0…+120 °C) |
