| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Working Pressure | 5/10 kg/cm2 (75/150 psi) |
| Size | 65mm to 1,800mm (2 1/2in to 72in) |
| Flange | JIS 5K/10K, PN 6/10 |

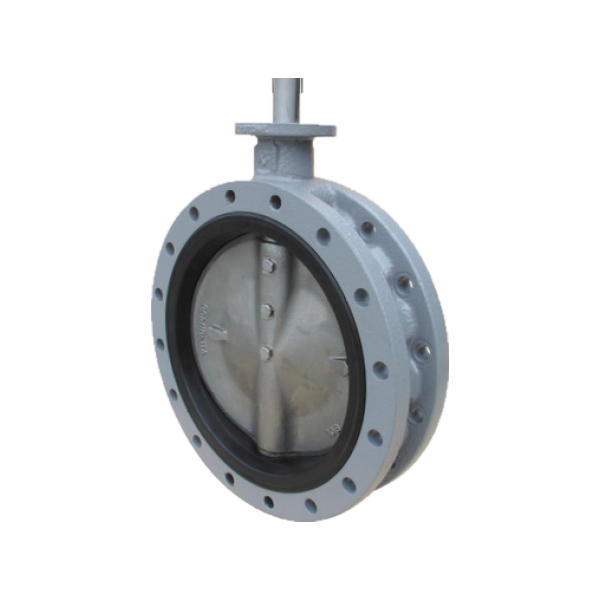

| Type | Resilient seated double flanged, fully rubber lined, concentric disc |
| Seat | NBR, EPDM |
| Body | Carbon Steel, Cast Iron (optional Ductile Iron) |
| Disc | 304 Stainless Steel, 316 Stainless Steel, Aluminium Bronze |
| Actuator | Handle F401 (leverlock), Gear F420-F430, Pneumatic F79U, Gear & Pneumatic F453/79U, Electric EPI2 |
