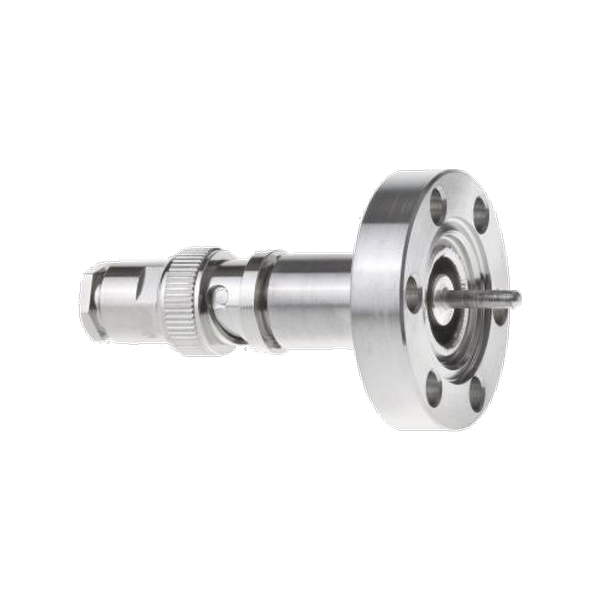

| Model | FEF 16/1 |
| Connection Standard | CF16-F |
| Current | 3A |
| Voltage | AC 0.35kV / DC 0.5kV |
| Tightness | 1×10⁻¹⁰ mbar·l/s |
| Bakeout Temperature | 50°C(122°F) with connector / 400°C(572°F) without; footnote 1) up to 150°C(302°F) when elastomer seals are used |
| Body Material | Stainless steel, insulator Al2O3 |
| Connector/Cable | BNC UG88/U, RG58/U cable |
| Working Pressure (absolute) | 1×10⁻¹⁰ mbar to 2.5 bar (reduced to 2 bar at 400°C) |
| Frequency | 150 MHz |
| Impedance | 50-60 Ω |
| Weight | 0.14 kg (0.31 lbs) |
