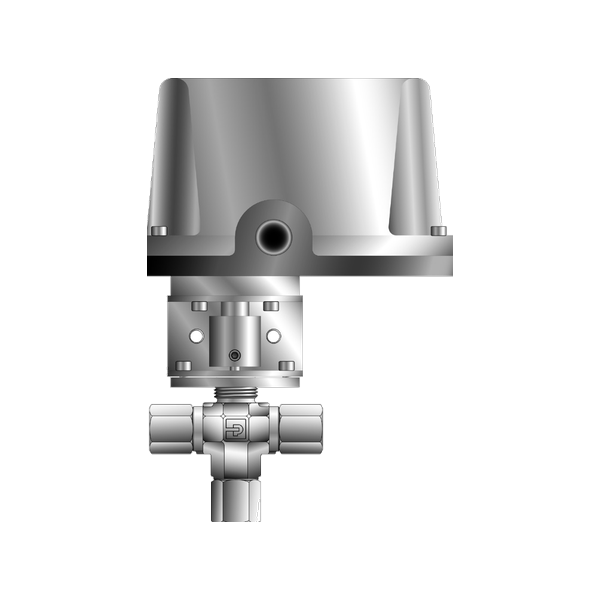

The 70, 80 and 90 Series are electric actuators for remote operation of Parker B, MB, HB and SWB ball valves. They suit 2-way (90°) and 3-way (180°) configurations, and the 80 and 90 Series have explosion-proof (NEMA 7, 9) housings.
| Power Supply Voltage | AC 24 / 115 / 230 V, DC 12 / 24 V (70) / AC 115 / 230 V (80) / universal power board (90) |
| Torque | 17 / 34 / 68 N·m |
| Duty Cycle | 25% (70 AC) / 75% (80) / 100% (70 DC, 90) |
| Temperature Rating | 0 to 66 °C (down to -40 °C with heater and thermostat) |
| Protection Rating | NEMA 4 / 4X (70), NEMA 4 / 4X / 7 / 9 (80 / 90) |
| Mounting | ISO 5211 |
| Weight | 2.7 kg (70) / 7.7 kg (80, 90) |
