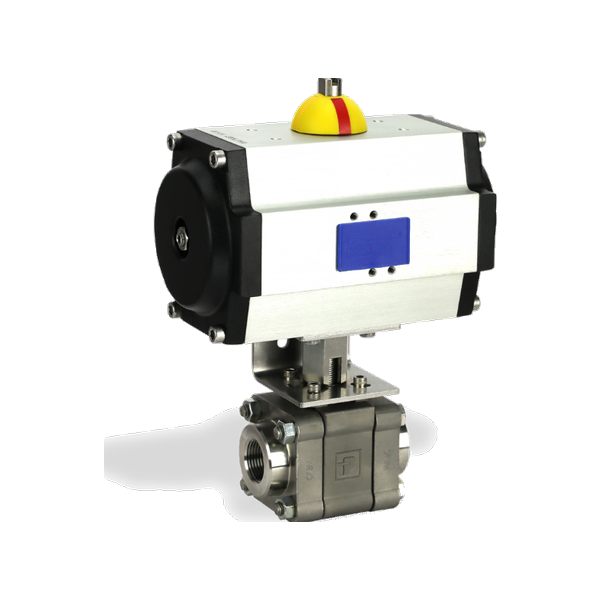

The pneumatic actuator for ball valves uses a rack and pinion design to turn Parker ball valves 90° or 180°. It comes in double acting and spring return types, and NAMUR solenoid valves and limit switches can be added.
| Actuation Type | Rack and pinion, double acting / spring return (normally closed, normally open) |
| Rotation Angle | 90° (AC, AO, AD) / 180° (ACX, ADX) |
| Supply Air Pressure | 4 to 10 bar (60 to 145 psig) |
| Temperature Rating | -50 to 70 °C (standard) / -15 to 160 °C (high temperature) |
| Mounting | ISO 5211 (F03, F04, F05, F07) |
| Accessories | NAMUR solenoid valve / limit switch (SB, SX) |
