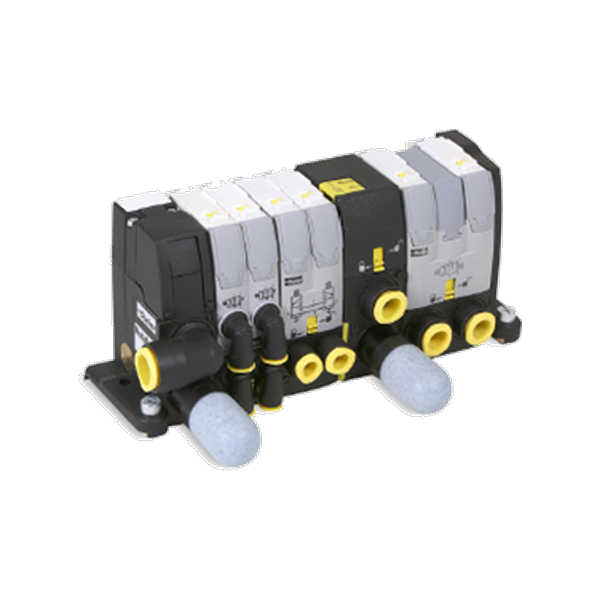

The Moduflex P2M is a modular pneumatic valve system built by joining 3/2 and 4/2 valve modules. Communication modules connect it to fieldbuses such as Profinet, EtherNet/IP, EtherCAT and IO-Link.
| Working Fluid | Air / inert gas (filtered to 40 µm) |
| Working Pressure | -0.9 to 8.0 bar |
| Pilot Pressure | 3.0 to 8.0 bar |
| Temperature Rating | -15 to 60 °C |
| Rated Voltage | DC 24 V |
| Power Consumption | 1 to 1.2 W |
| Protection Rating | IP65 / IP67 (M8 connector) / IP40 (clip connector) |
| Communication | Profinet IO / EtherNet/IP / Modbus/TCP / EtherCAT / PowerLink / CC-Link IE / IO-Link |
