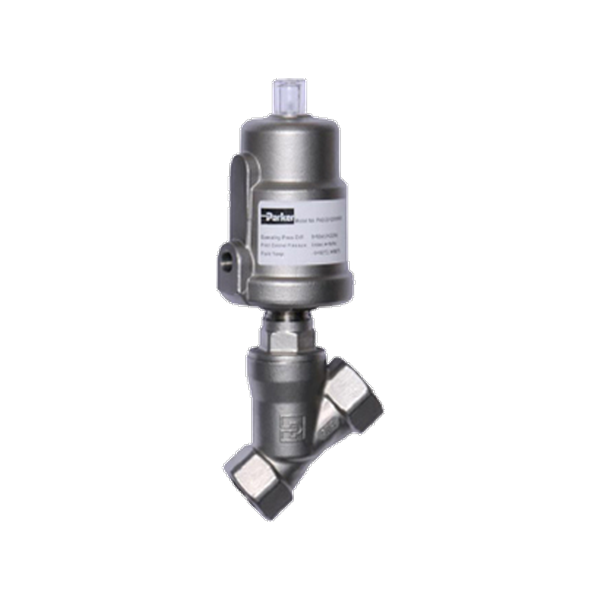

The PA Series is an angle seat valve opened and closed by a pneumatic actuator. It has an SS304 or SS316L body with 3/8" to 2-1/2" NPT connections and is used for air, inert gas and steam.
| Actuation Type | Pneumatic actuated, 2-way normally closed / normally open |
| Body Material | SS304 / SS316L |
| Port Size | 3/8" to 2-1/2" NPT |
| Cv Value | 5.5 to 81.7 |
| Working Pressure | 0 to 232 psi (air, inert gas) / 0 to 130 psi (steam) |
| Actuator Diameter | 32 to 100 mm (aluminum, SS304) |
| Pilot Pressure | 43.5 to 95.7 psi |
