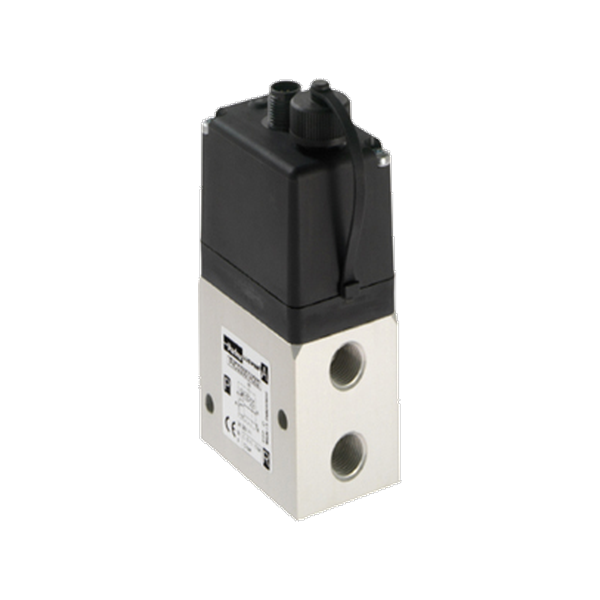

The EPP4 is an electronic proportional pressure regulator that changes the outlet pressure according to a 0 to 10 V or 4 to 20 mA control signal. Ports are 1/4" and 1/2", and the outlet pressure is 0.05 to 10 bar.
| Working Fluid | Lubricated or non-lubricated air / neutral gases (filtered to 40 µm or better) |
| Inlet Pressure | 1 to 12 bar |
| Outlet Pressure | 0.05 to 10 bar |
| Control Signal | Analog 0 to 10 V / 4 to 20 mA |
| Power Supply Voltage | DC 24 V ±15% |
| Power Consumption | Max. 2.8 W |
| Max. Flow | 70 m³/h (1/4") / 150 m³/h (1/2") |
| Temperature Rating | 0 to 50 °C (ambient, fluid) |
| Protection Rating | IP65 |
