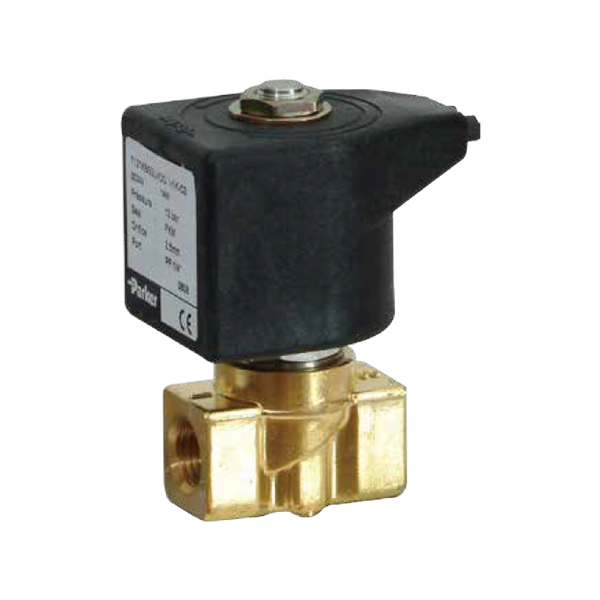

The 122 Series is a normally open 2/2-way direct operated solenoid valve that stays open when the coil is de-energized. It has a brass body with 1/8" to 1/4" ports and is used for dry or lubricated air, neutral gases and liquids.
| Working Fluid | Dry or lubricated air / neutral gases / liquids |
| Actuation Type | Direct operated, 2/2-way normally open |
| Body Material | Brass |
| Port Size | 1/8" to 1/4" BSP / sub-base |
| Orifice Size | 1.5 to 3.5 mm |
| Operating Pressure Differential | 0 to 40 bar (MOPD) |
| Fluid Temperature | -30 to 140 °C |
| Ambient Operating Temperature | -10 to 50 °C |
| Seat Material | FKM / PCTFE / Ruby |
