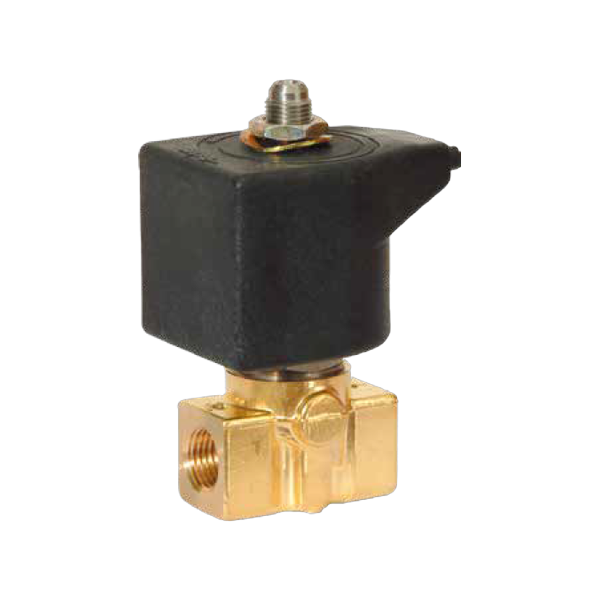

The 133 Series is a universal 3/2-way direct operated solenoid valve that can be used as normally closed, normally open or diverting by changing the port connections. It has a brass body with 1/8" to 1/4" ports, and a sub-base type is also available.
| Working Fluid | Dry or lubricated air / neutral gases / liquids |
| Actuation Type | Direct operated, 3/2-way universal |
| Body Material | Brass |
| Port Size | 1/8" to 1/4" BSP / sub-base |
| Orifice Size | 0.8 to 3.5 mm |
| Operating Pressure Differential | 0 to 30 bar (MOPD) |
| Fluid Temperature | -20 to 140 °C |
| Ambient Operating Temperature | -20 to 50 °C |
| Seat Material | FKM / PUR |
