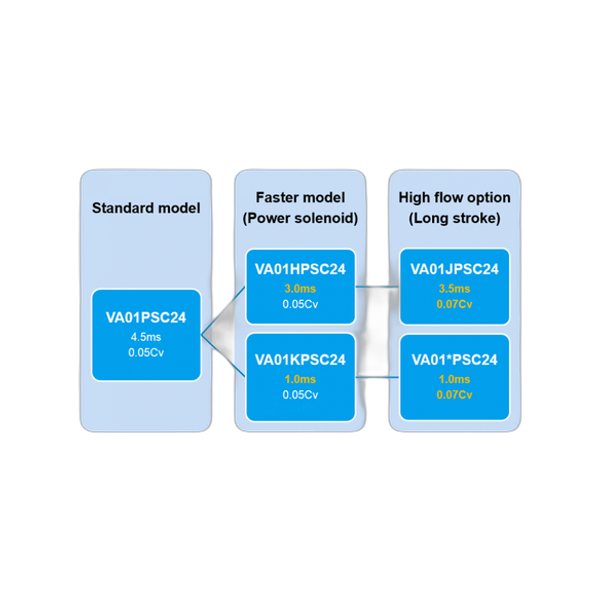

The VA01 is a miniature 3-port 2-position direct acting solenoid valve for vacuum and vacuum break. It has a poppet seal and sub-base piping, with an ON and OFF response time of 3 ms.
| Working Fluid | Vacuum (PSV23, PLV23) / non-lubricated air (PSP23, PLP23) |
| Port Size | M5 |
| Working Pressure Range | -100 to 0 kPa (vacuum) / 0 to 0.5 MPa (vacuum break) |
| Cv Value | 0.054 (vacuum) / 0.033 (vacuum break) |
| Response Time | ON 3 ms / OFF 3 ms |
| Ambient Operating Temperature | -10 to 50 °C (single) / -5 to 50 °C (latching) |
| Rated Voltage | DC 24 V |
| Power Consumption | 1 W (holding), 2 W (inrush) |
| Weight | 25 g (single) / 30 g (latching) |
