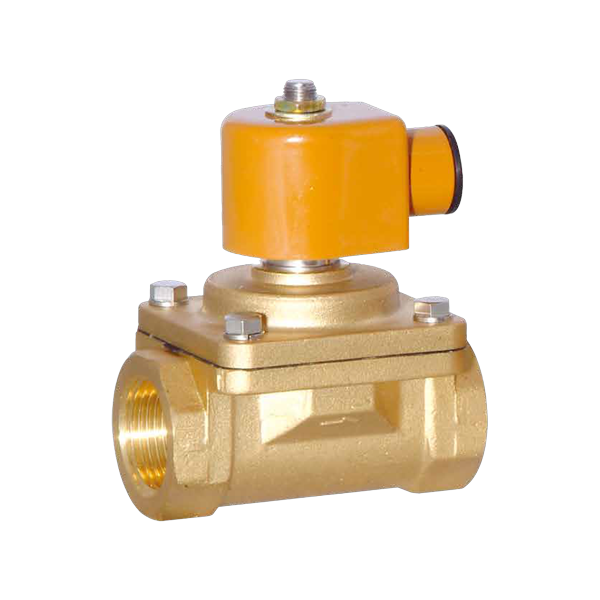

The NKV Series is a normally closed 2-port solenoid valve with a Magnalift design. It has a brass body, connects to air and gas lines in 3/8" to 1" PT, and comes with NBR or FKM seals.
| Working Fluid | Air / gas |
| Actuation Type | Magnalift, 2-port normally closed |
| Body Material | Brass |
| Connection Size | PT 3/8" to 1" |
| Orifice Size | 15 to 27 mm |
| Flow Rate | Cv 2.8 to 8.4 |
| Operating Pressure Differential | AC 10 bar or less / DC 7 bar or less |
| Fluid Temperature | 60 °C or less (NBR), 120 °C or less (FKM) |
| Ambient Operating Temperature | -10 to 50 °C |
| Seal Material | NBR / FKM |
| Seat Material | NBR / FKM |
