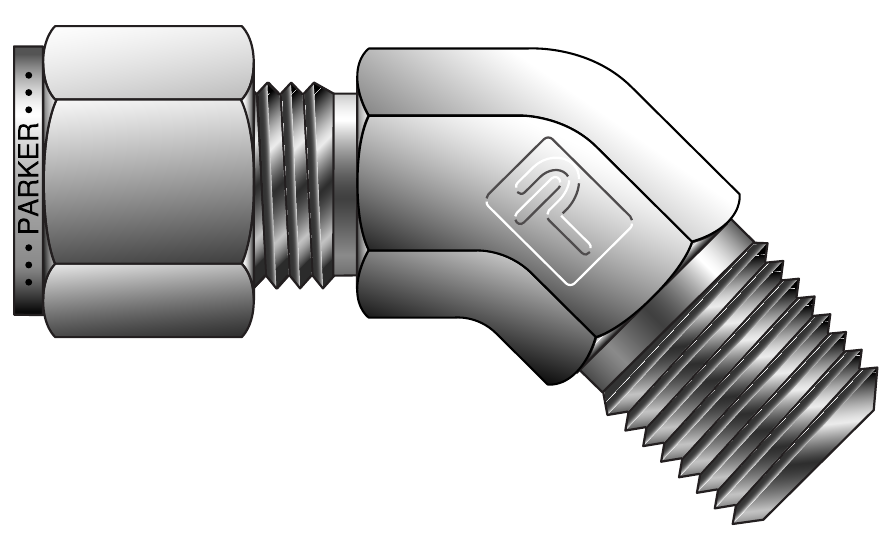

The Parker CPI / A-LOK NPT Male 45° Elbow (VBZ / MVEL) connects a fractional tube to an NPT male thread at a 45° angle. It comes in 14 size combinations with tube outer diameters from 1/16" to 1". CPI uses a single ferrule and A-LOK a double ferrule.
| Type | NPT male 45° elbow: connects a fractional tube to an NPT male thread at a 45° angle |
| Part Numbers | CPI 1-1 VBZ, A-LOK 1MVEL1N ~ CPI 16-16 VBZ, A-LOK 16MVEL16N |
| Thread | NPT |
| Size Numbers | Size numbers in the part number are in sixteenths of an inch (for example 1/2" tube = 8, 1/4" thread = 4) |
| Connection Method | CPI: single ferrule / A-LOK: double ferrule |
| Material | 316 stainless steel (heat code traceable) is standard / Other materials: steel, brass, aluminum, nickel-copper, Hastelloy C, Alloy 600, titanium, 6Mo, Incoloy 625 and 825 |
| Material Codes | Material code added to the end of the part number after a hyphen: B brass / SS or 316 = 316 stainless steel / S steel / A aluminum / M Alloy 400 / HC Hastelloy C-276 / IN Alloy 600 / SS20 Carpenter 20 / 6MO 6Mo / 625 / 825 / T titanium |
| Sizes (inches): Tube O.D. and NPT Thread Size by CPI Part Number (A-LOK Part Number) | 1-1 VBZ (1MVEL1N): tube 1/16" x NPT 1/16" / 2-2 VBZ (2MVEL2N): tube 1/8" x NPT 1/8" / 3-2 VBZ (3MVEL2N): tube 3/16" x NPT 1/8" / 4-2 VBZ (4MVEL2N): tube 1/4" x NPT 1/8" / 4-4 VBZ (4MVEL4N): tube 1/4" x NPT 1/4" / 5-2 VBZ (5MVEL2N): tube 5/16" x NPT 1/8" / 6-2 VBZ (6MVEL2N): tube 3/8" x NPT 1/8" / 6-4 VBZ (6MVEL4N): tube 3/8" x NPT 1/4" / 6-6 VBZ (6MVEL6N): tube 3/8" x NPT 3/8" / 8-6 VBZ (8MVEL6N): tube 1/2" x NPT 3/8" / 10-8 VBZ (10MVEL8N): tube 5/8" x NPT 1/2" / 12-12 VBZ (12MVEL12N): tube 3/4" x NPT 3/4" / 14-12 VBZ (14MVEL12N): tube 7/8" x NPT 3/4" / 16-16 VBZ (16MVEL16N): tube 1" x NPT 1" |
